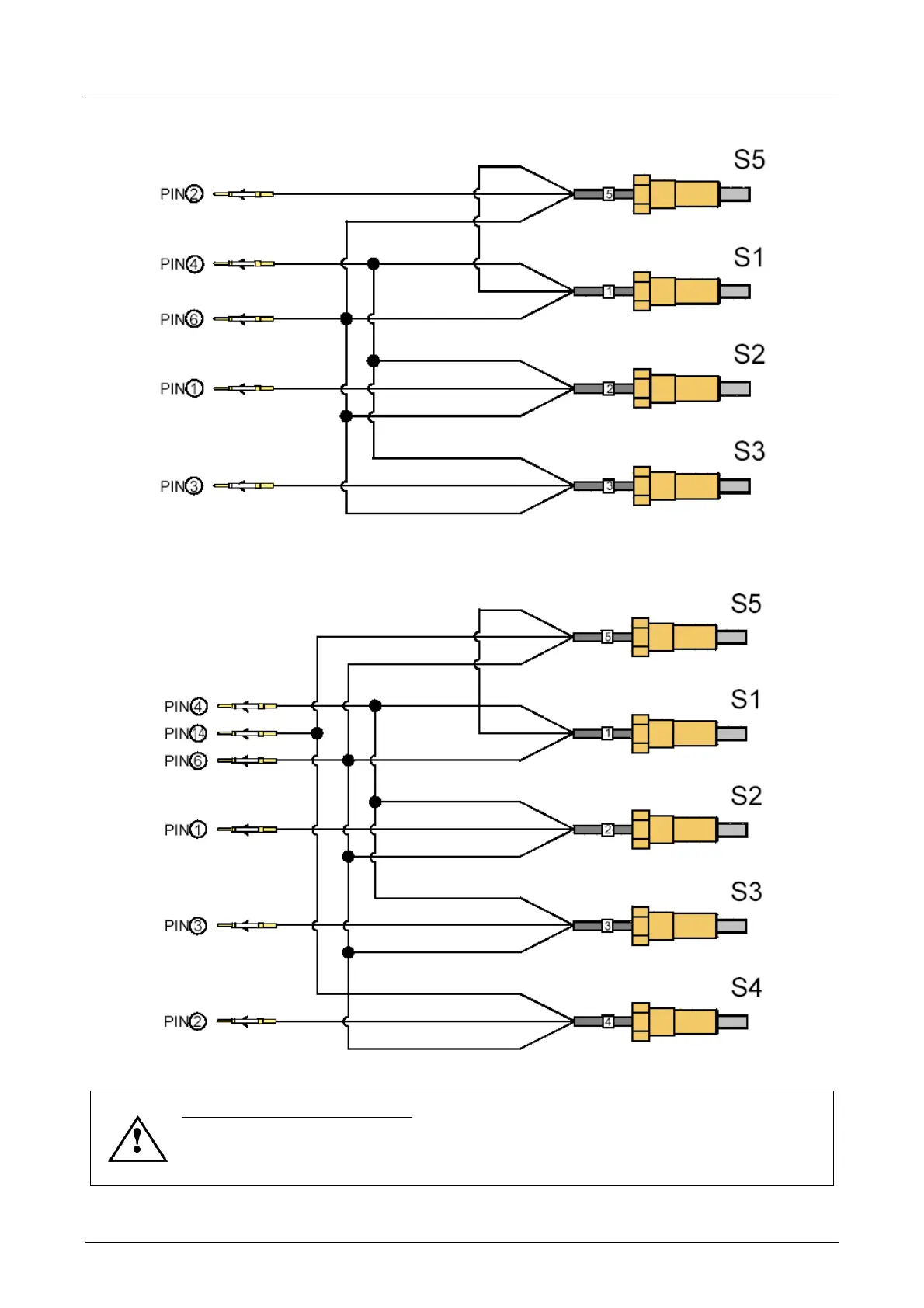

8.8.3 Wiring the sensors of ISO30 models with double-acting piston
Figure 8.3
connection of the sensors of the ISO30 versions to the PINs of the signals connector
8.8.4 Wiring the sensors of HSK models with double-acting piston
Figure 8.4
connection of the sensors of the HSK versions to the PINs of the signals connector
NOTE FOR HSK VERSIONS: the output on PIN “14” must not be used to control
the machine, but only to identify the faulty sensor of the <S1+S4> range in the
event of malfunctioning, and to calibrate sensor S1 as described in paragraphs
8.8.13 and subsequent.
