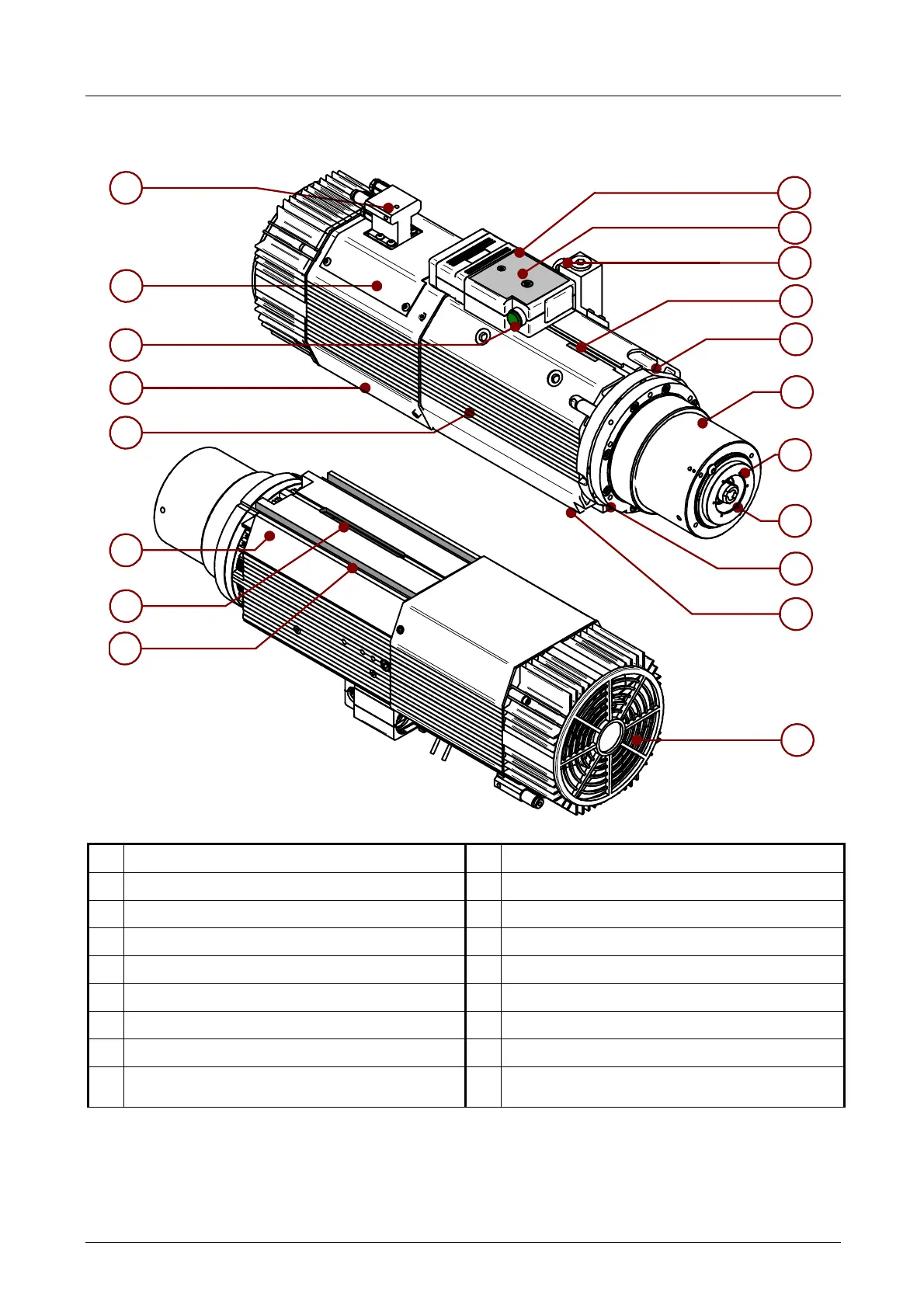

2.3 MAIN PARTS OF MODEL ES939
11
16
6
18
17
13
15
9
10
9
7
5
8
12
4
1
2
14
3
1 Fixed electrical connectors 10 Framework
2 EC marking plate 11 Electric fan (air-cooled versions only)
3 Encoder connector 12 Pneumatic connectors
4 Serial number 13 Cover of the sensor area
5 Connector for sensor on accessories (e.g. C-axis) 14 Button for the manual release of the tool holder
6 “Nose” 15 Pneumatic cylinder
7 Shaft 16 Resting surface
8 Tool hooking system 17 Seat for centring tang
9
Threaded bores for accessories
(on the sides and the front flange)
18 “T” slot for fixing
