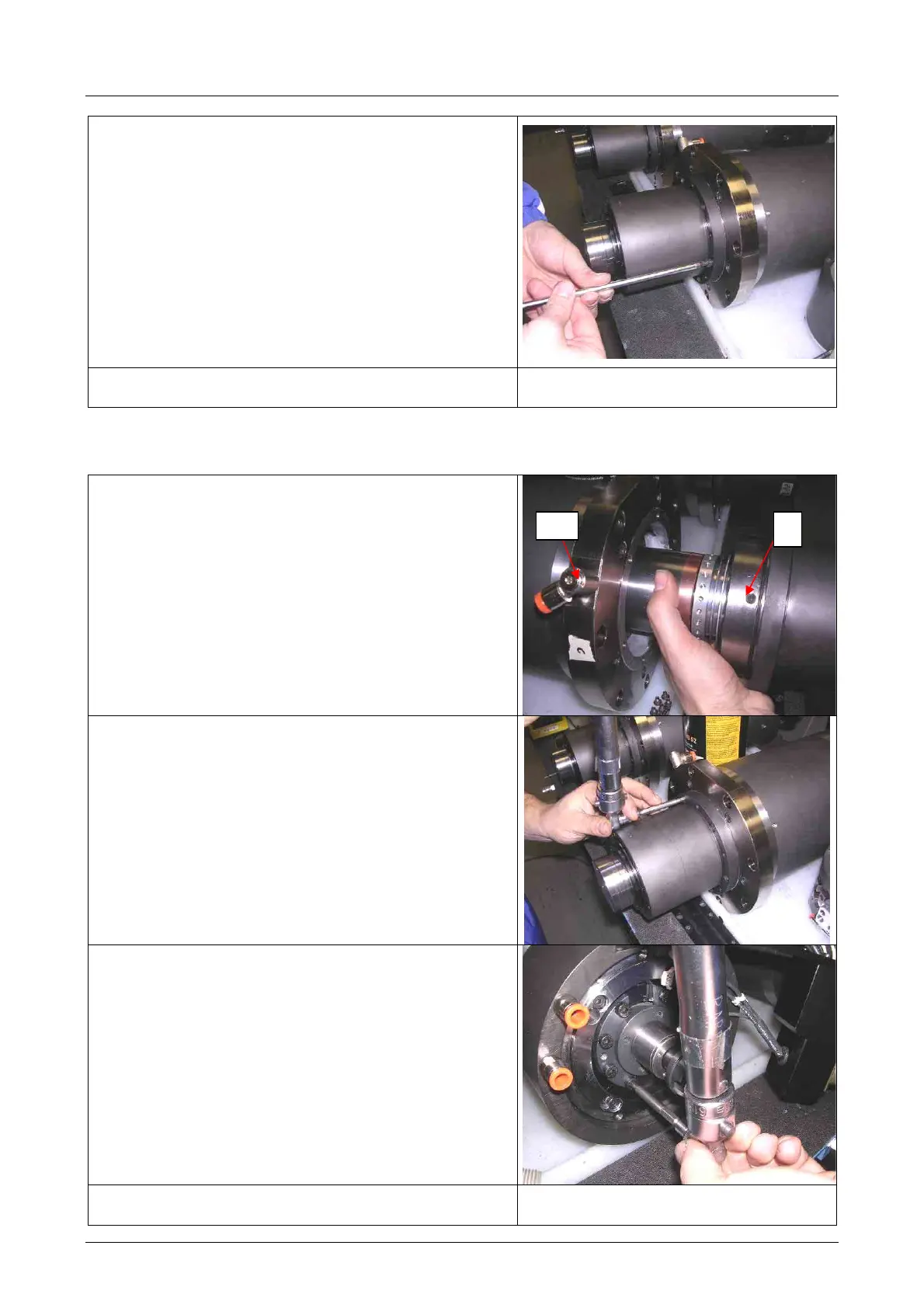

HSD ES939 - Assembly Procedure

HSD
5801H0056 ______________________________________________________________ 131/181
8.
Loosen the eight 6x20 screws from the front
flange
9.
Carefully unthread the shaft kit
8.2.2 Assembly procedure
1.
Insert the shaft kit, taking care to align the
pressurisation holes on the kit (on the outer
side surface 1) and on the statoric unit (inner
side surface 2)
2.
Tighten the eight 6x20 screws (with knurled
washer) on the front flange, and definitively
tighten with a torque wrench at 14Nm
3.
Tighten the eight 6x14 screws (with knurled
washer) on the semi-rings, using a torque of 10
Nm
4.
Spread a layer of Loctite 510 (573) on the
reaction flange
2
1
