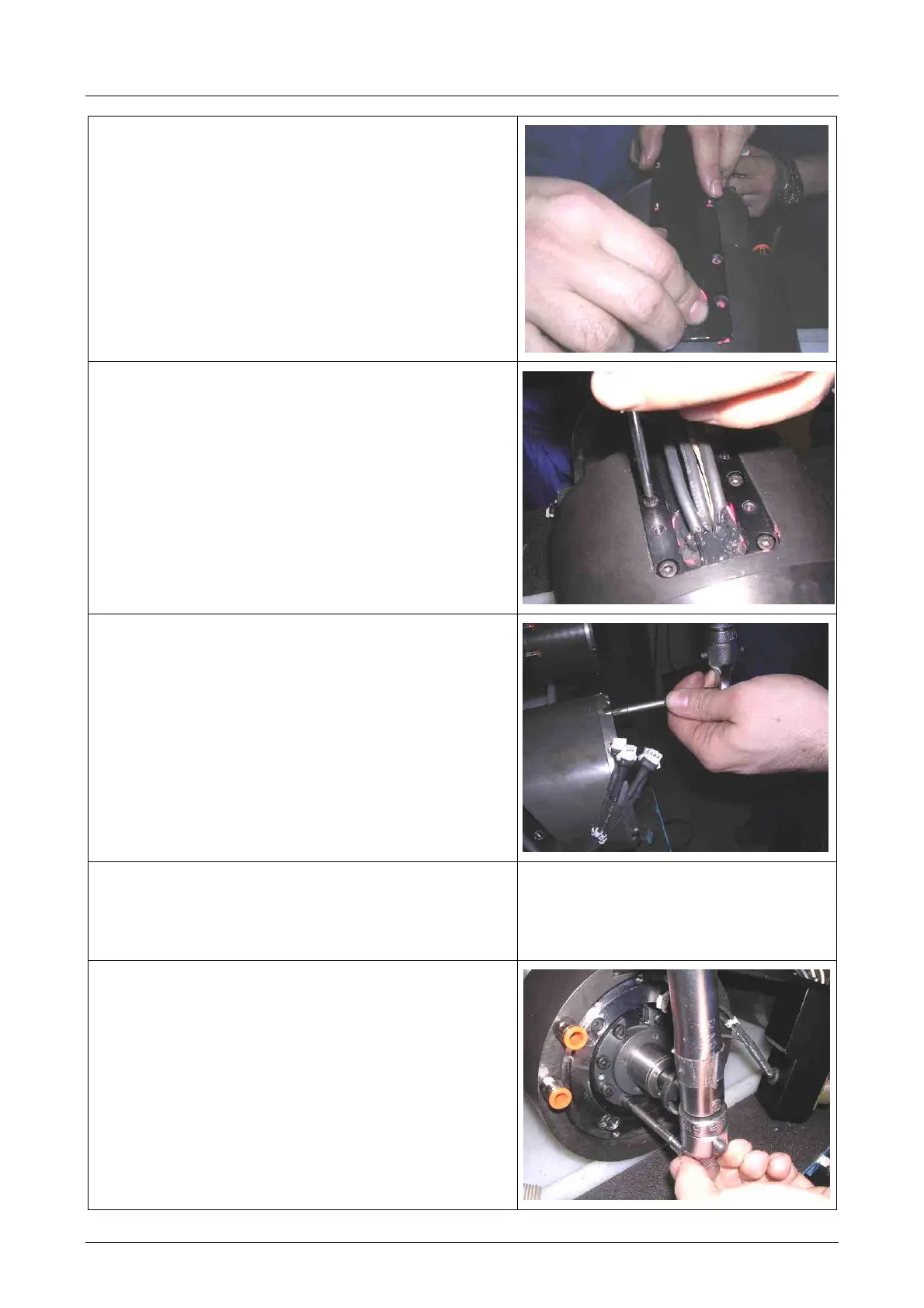

3.
Remove the cover of the mounting plate
bracket
4.
Release the bracket, removing the six screws
that fix it to the statoric unit
5.
Loosen the six 6x105 screws from the cylinder
6.
The cylinder is fixed with “Loctite 510” sealing
paste,
for an easier disconnection:
- hold the cylinder unit firmly
- feed it with max. 2 bar.
7.
Loosen the eight 6x14 screws from the two
semi-rings
