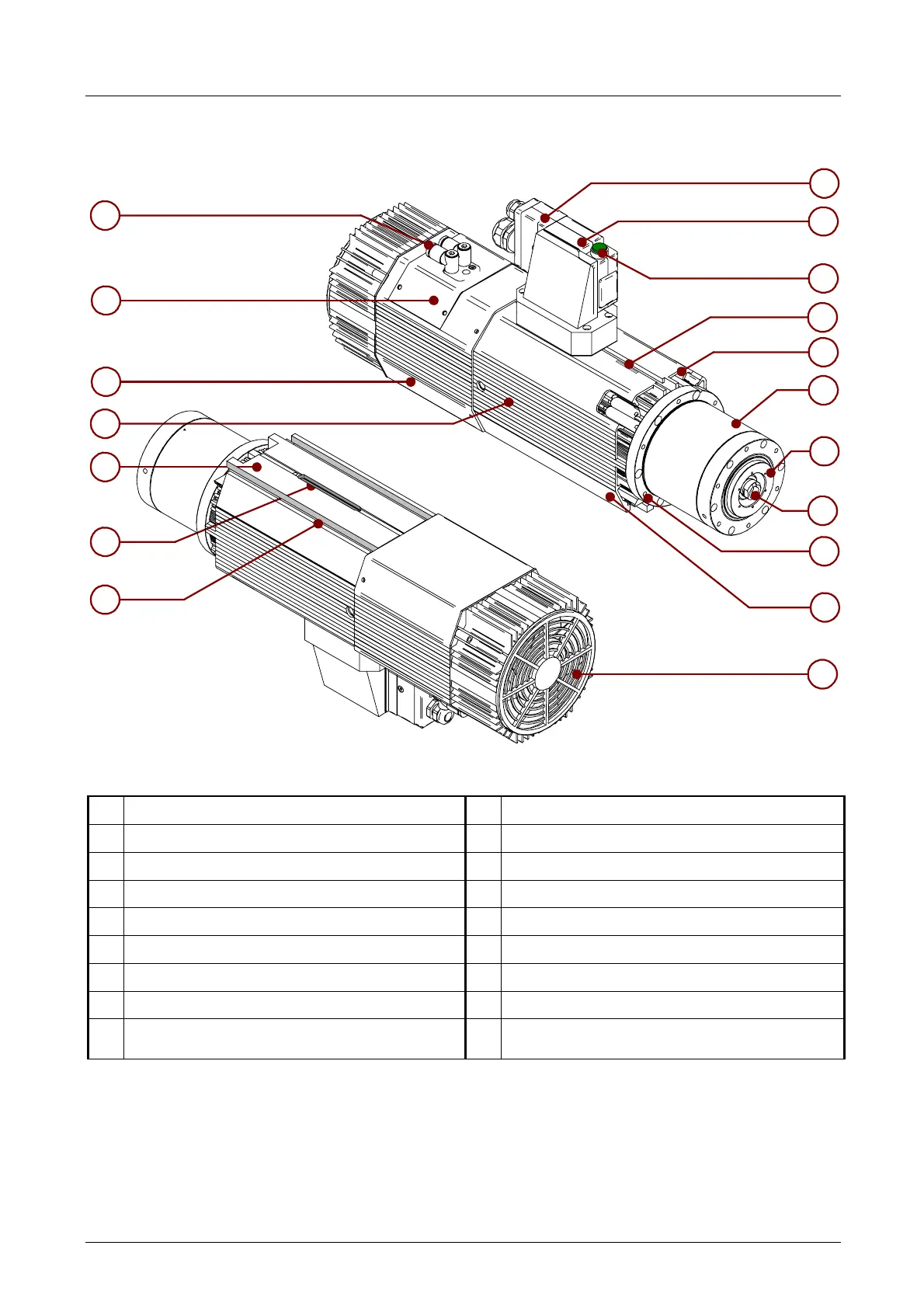

2.4 VARIATIONS WITH VERTICAL MOUNTING PLATE
12
1
8
4
6
7
9
10
9
14
13
16
3
2
5
15
17
11
1 Movable electrical connectors 10 Framework
2 Fixed electrical connectors 11 Electric fan (air-cooled versions only)
3 Button for the manual release of the tool-holder 12 Pneumatic connectors
4 Serial number 13 Cover of the sensor area
5 Connector for sensor on accessories (e.g. C-axis) 14 Pneumatic cylinder
6 “Nose” 15 Resting surface
7 Shaft 16 Seat for centring tang
8 Tool hooking system 17 “T” slot for fixing
9
Threaded bores for accessories
(on the sides and the front flange)
