4.6.3 Configurable power supply terminal board 220/380 V (optional)
Upon request, some models
are available with delta or star
configurable power supply
terminal boards, to be used with
a rated voltage of 380V or
220V.
The models available in the
configurable version are
highlighted in chapter 3.

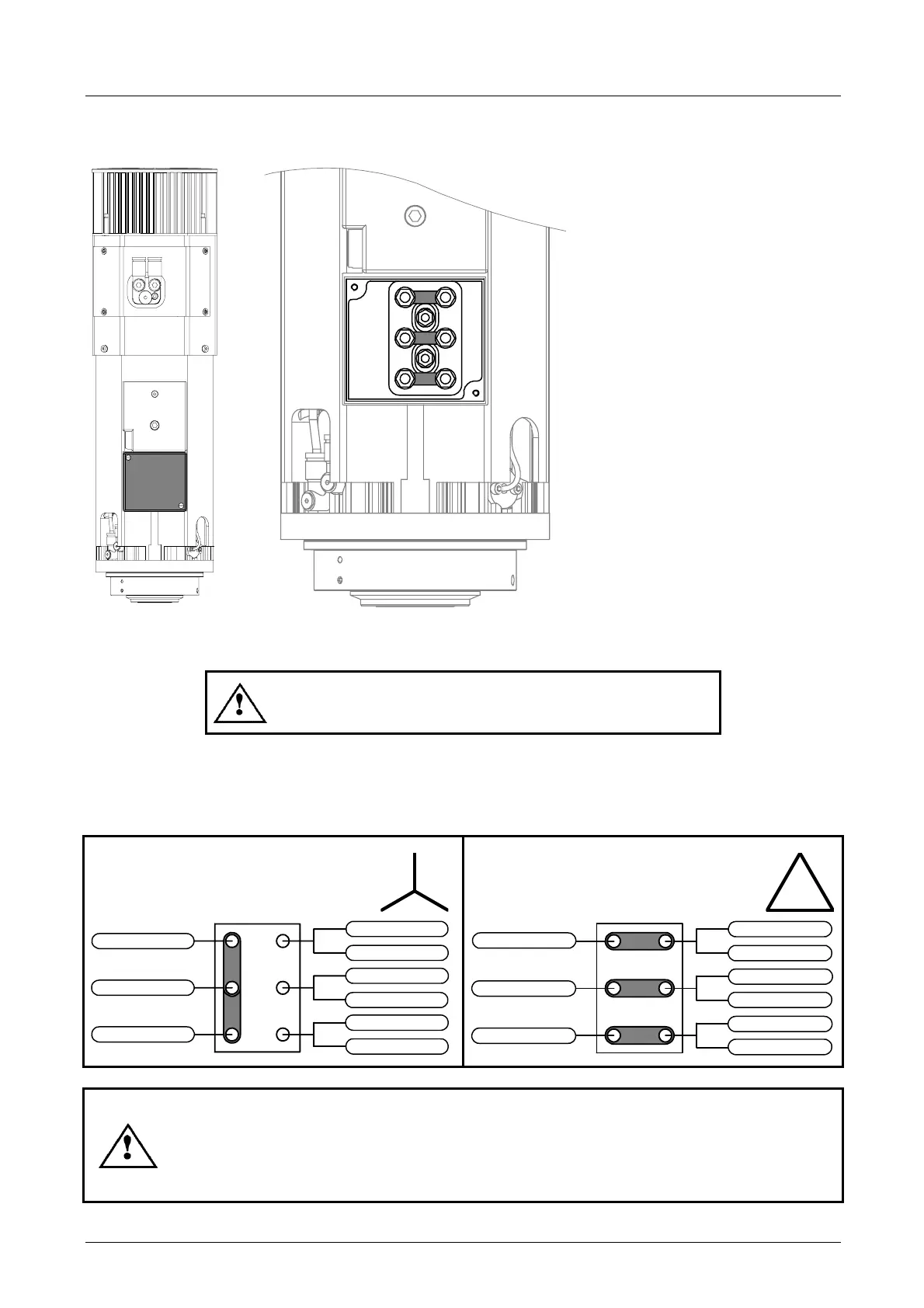

The position of the terminal
board is shown alongside,
protected by a cover fixed with
two screws.
Before installing, check the type of connection in
the terminal board
CONNECTIONS LAYOUT
STAR CONNECTION
(rated voltage 380V)
DELTA CONNECTION
(rated voltage 220V)
RED (STATOR)
380V - PIN6
BLACK (STATOR)
WHITE (STATOR)
BLACK (STATOR)
WHITE (STATOR)
RED (STATOR)
380V - PIN4
380V - PIN8
BLACK (STATOR)
WHITE (STATOR)
RED (STATOR)
RED (STATOR)
220V - PIN6
BLACK (STATOR)
WHITE (STATOR)
220V - PIN8
220V - PIN4
IMPORTANT:
In the star connection (for a rated voltage of
380V), the clamps to be joined in short-circuiting
are those connected to a single cable.
