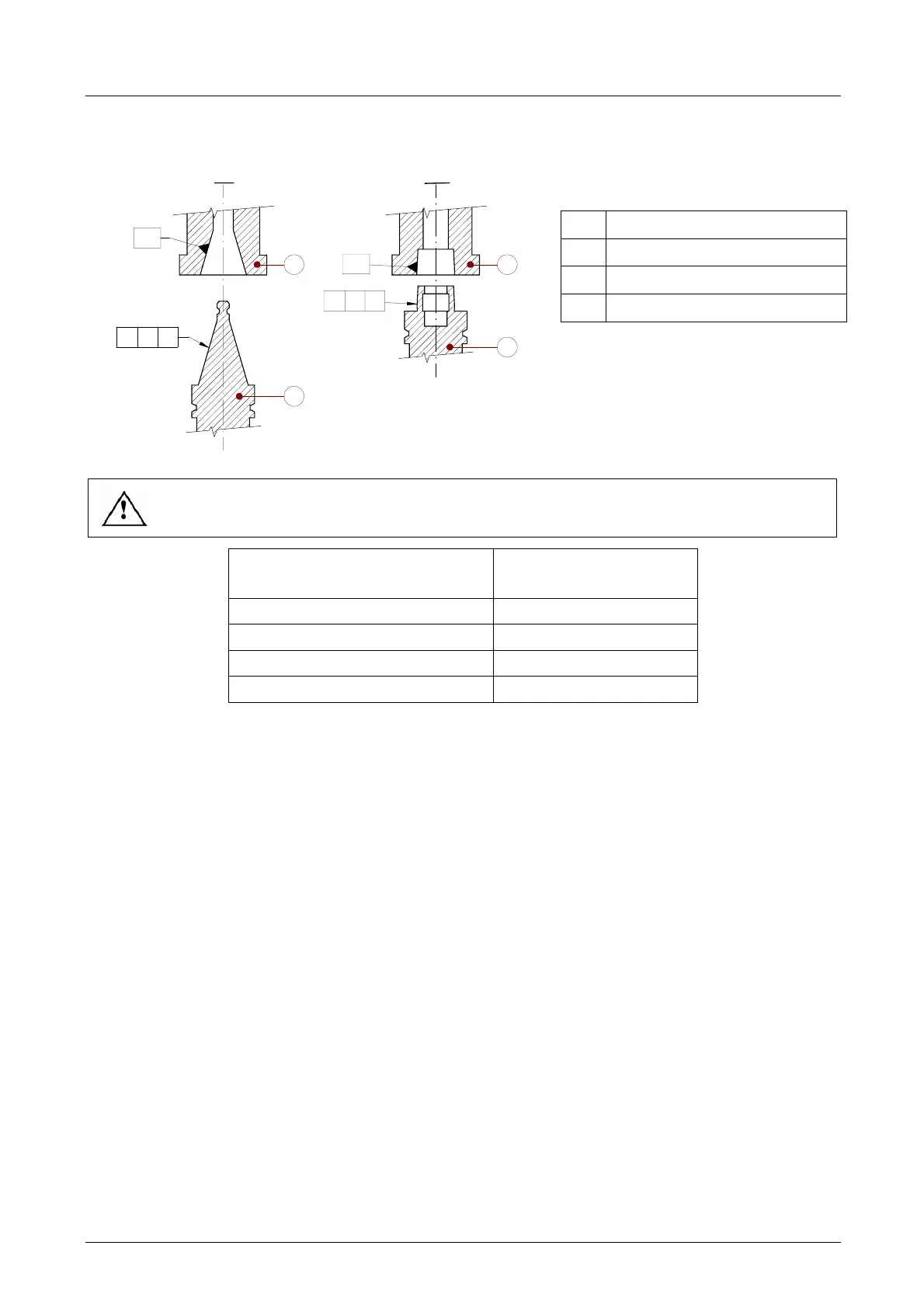

4.3.4 Tool change system
1 Spindle shaft ISO 30
2 Tool-holder cone ISO 30
3 Spindle shaft HSK F63
4 Tool-holder cone HSK F63
-B-
a B
-A-
a A
ISO
HSK
1 3
4
2
C
C
The tool-holder magazine must position the cones with a concentricity error between the
spindle shaft and the tool-holder cone as shown in the table below.
Tool hooking system
Concentricity “C”
(mm)
ISO 30 0.2
HSK E50-F63 0.8
HSK E40-F50 0.7
HSK E63-F80 0.8
