HSD
5801H0056 _______________________________________________________________ 67/181
4 INSTALLATION AND INITIAL START-UP
4.1 CHECK
Before carrying out any operations, CHECK:
that no part of the electrospindle has been damaged during transport and/or handling;
that connectors are not damaged.
4.2 PREPARATION OF THE AUXILIARY SYSTEMS OF THE PLANT
The preparatory work (e.g. providing electricity, air systems etc.) is the responsibility of the
customer.
The electric power lead of the electrospindle must have the necessary transmission power. The
connection to the electricity mains supply must be carried out by qualified personnel. You are
reminded that the customer is responsible for all the electricity supply as far as the connectors of
the electrospindle.
The customer is also reminded of the need to provide all the safety conditions necessary for the
“earthing” of the electrospindle.
The earthing system must conform to the standards in force in the country of installation and must
be inspected at regular intervals by qualified personnel.
For the connections, see the sections below.
4.3 MECHANICAL CONNECTIONS
4.3.1 Positioning of electrospindle (versions with electric fan)
100

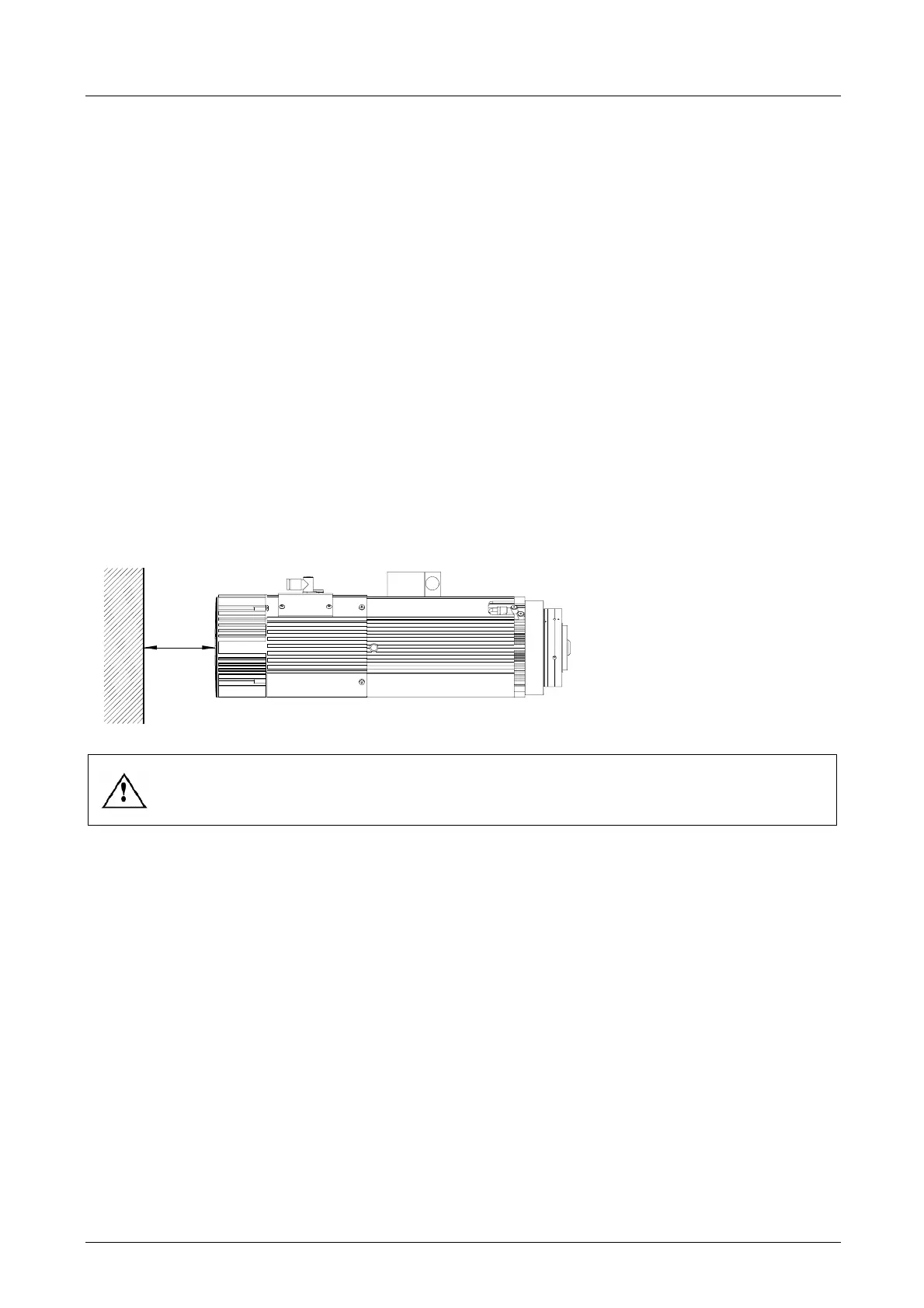

Figure4 .1 Minimum clearance of the fan
When choosing the location for
the electrospindle, ensure a
clearance of at least 100mm
from the grille of the electric
fan, so as not to obstruct the
flow of cooling air.
IP protection rating of the electric fan: 21; (IP protection rating of the electrospindle: 54).
Ensure that the electric fan sucks in sufficient air for its IP protection rating,
as otherwise it may be damaged.
