HSD ES939 - Position of the Sensors in Models ES884;ES888; Description of the Sensor Unit

HSD
5801H0056 ______________________________________________________________ 163/181

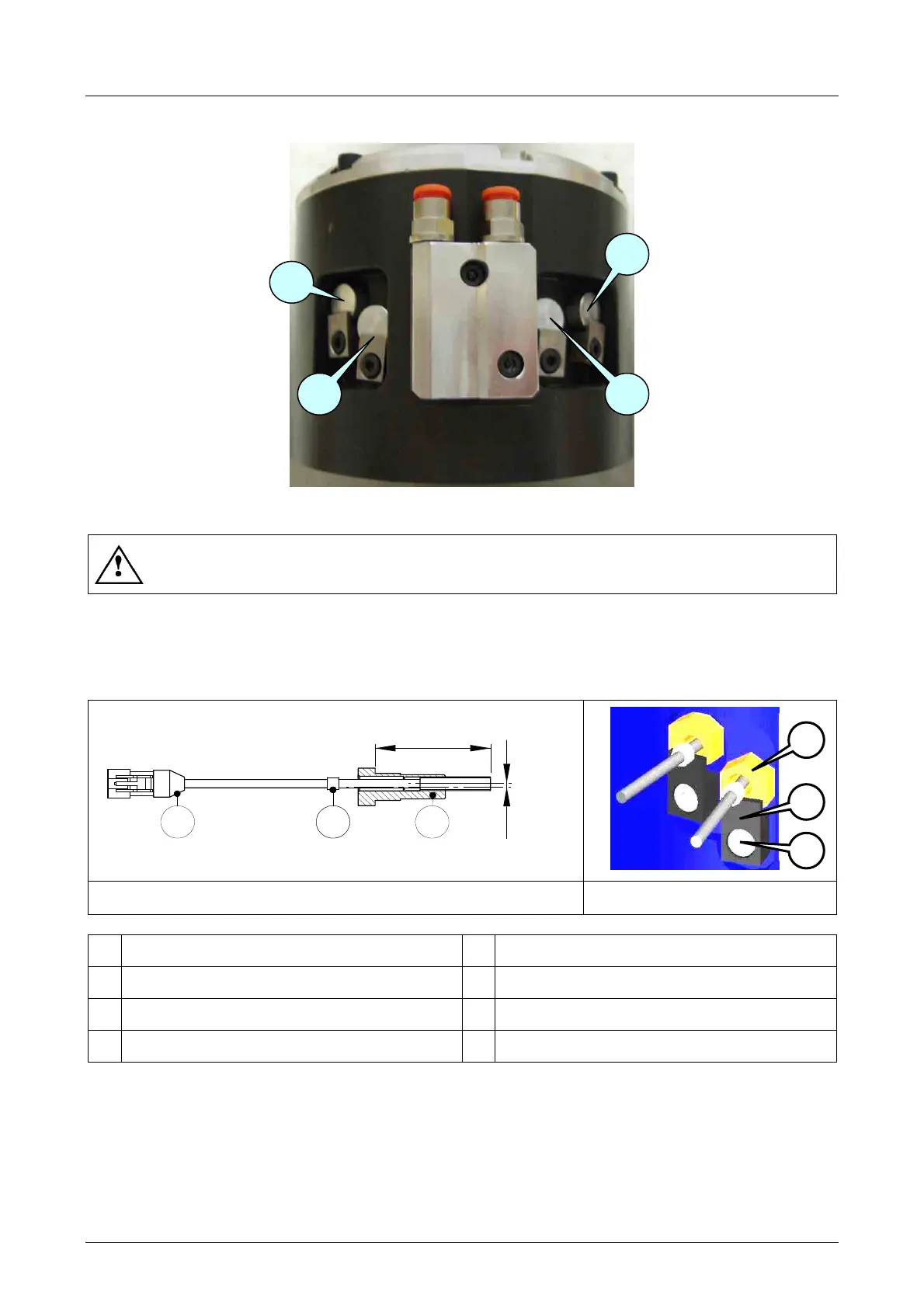

8.8.10 Position of the sensors in models ES884/ES888
8.8.11 Description of the sensor unit
The various sensors are identified by the number shown on the cable marking
label;
danger of damage to moving parts if sensors are swapped over.
The sensors are pre-assembled in calibrated bushes to allow simple insertion to the right depth in
the electrospindle.
It is therefore important to correctly identify the sensor to be replaced: for this reason, both the
sensors installed on the electrospindle and those supplied as spare parts bear a numbered cable
marking hose clamp (812).
e
L
1
3
3
22
Figure 812.sensor unit Figure8 13.
1
Electrical connector
E
Eccentricity for adjustment
2
Cable marking label
4
Sensor
3
Bush and sensor
5
Sensor blocking bracket
L
Calibrated position
6
Embedded hexagon screw
4
5
6
S2
S4S1
S3
