HSD ES939 - Disassembly of Shaft Kit and Phonic Wheel

HSD
5801H0056 ______________________________________________________________ 151/181

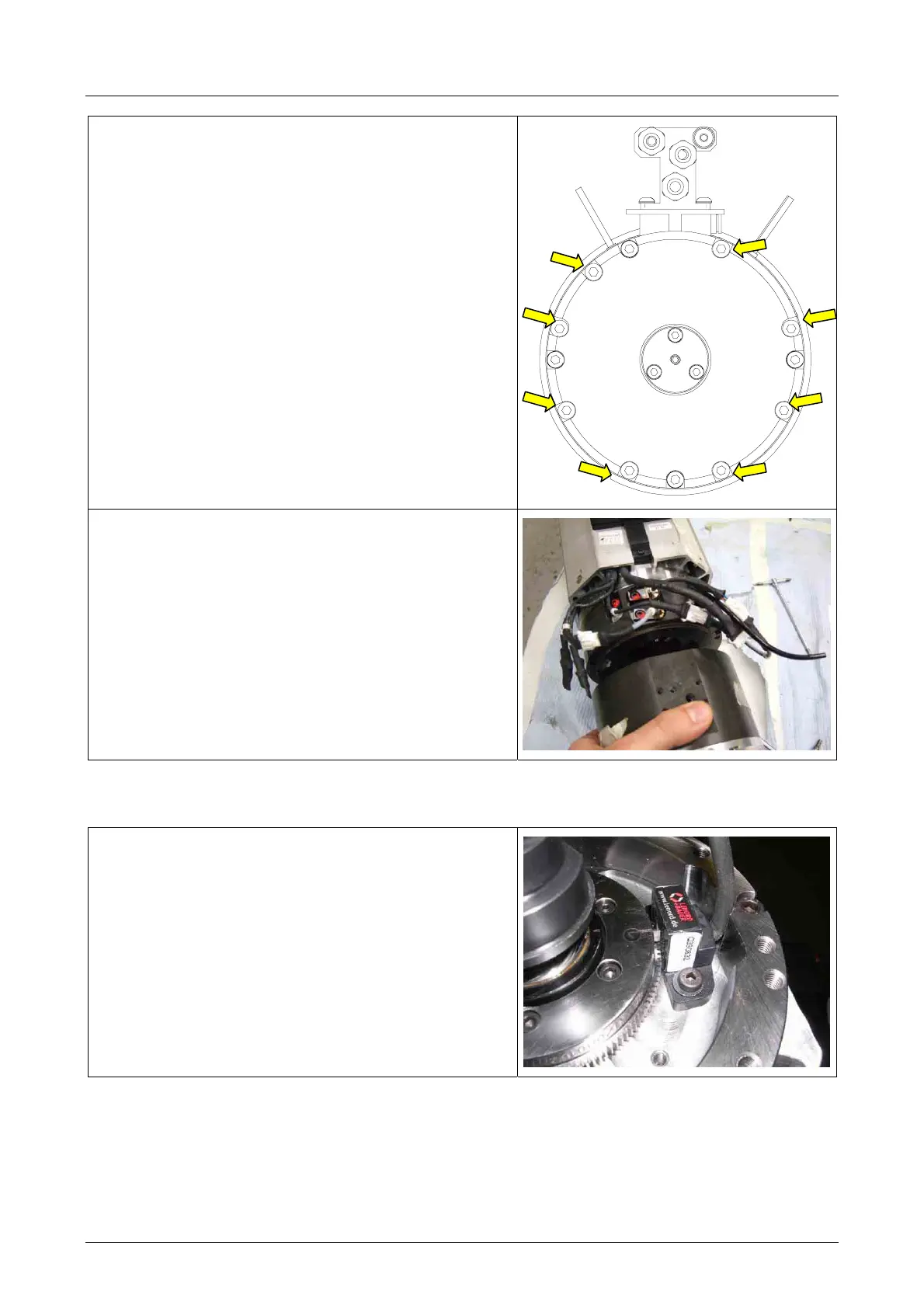

6.
Remove the eight M5x120 fixing screws from
the cylinder unit.
7.
The cylinder is fixed with “Loctite 510” sealing
paste,
for an easier disconnection:
- hold the cylinder unit firmly
- feed it with max. 2 bar.
8.6.2 Disassembly of shaft kit and phonic wheel
8.
Disassemble the encoder reader by loosening
the two M4x10 screws.
