HSD
5801H0056 ______________________________________________________________ 147/181

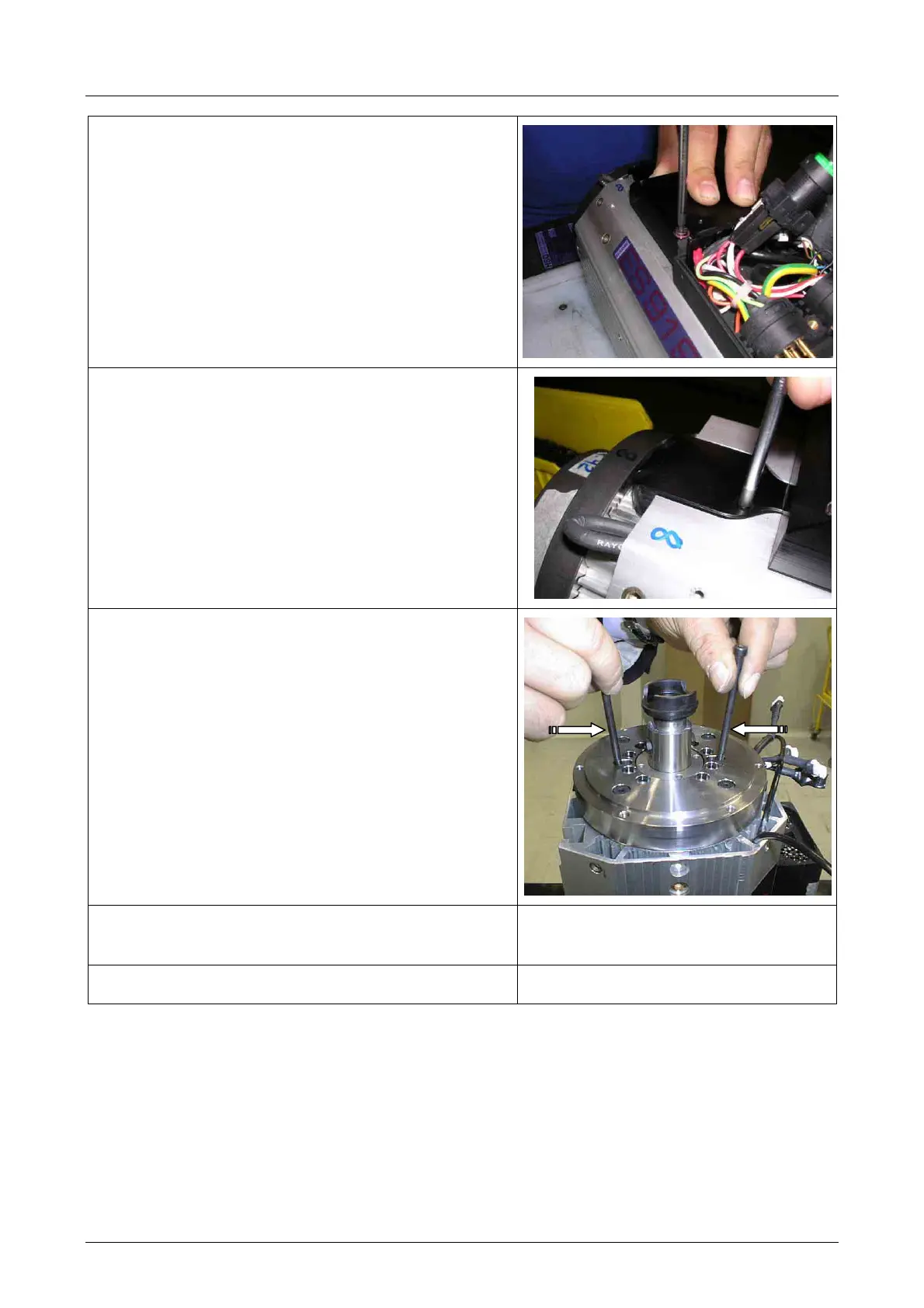

9.
Block the encoder electrical box with four 4x25 lowered
head screws, using Loctite 510 and a copper washer.
10.
Block the encoder cable manifold with four 3x10 screws +
a knurled washer.
11.
Close the reaction system, working in a radial
direction as shown in the figure
12.
Follow steps 21 to 28 of the disassembly
procedure for the standard models, until the
assembly is complete
13.
Carry out the sensor calibration procedure.
