HSD
5801H0056 _______________________________________________________________ 95/181
EXAMPLE 3

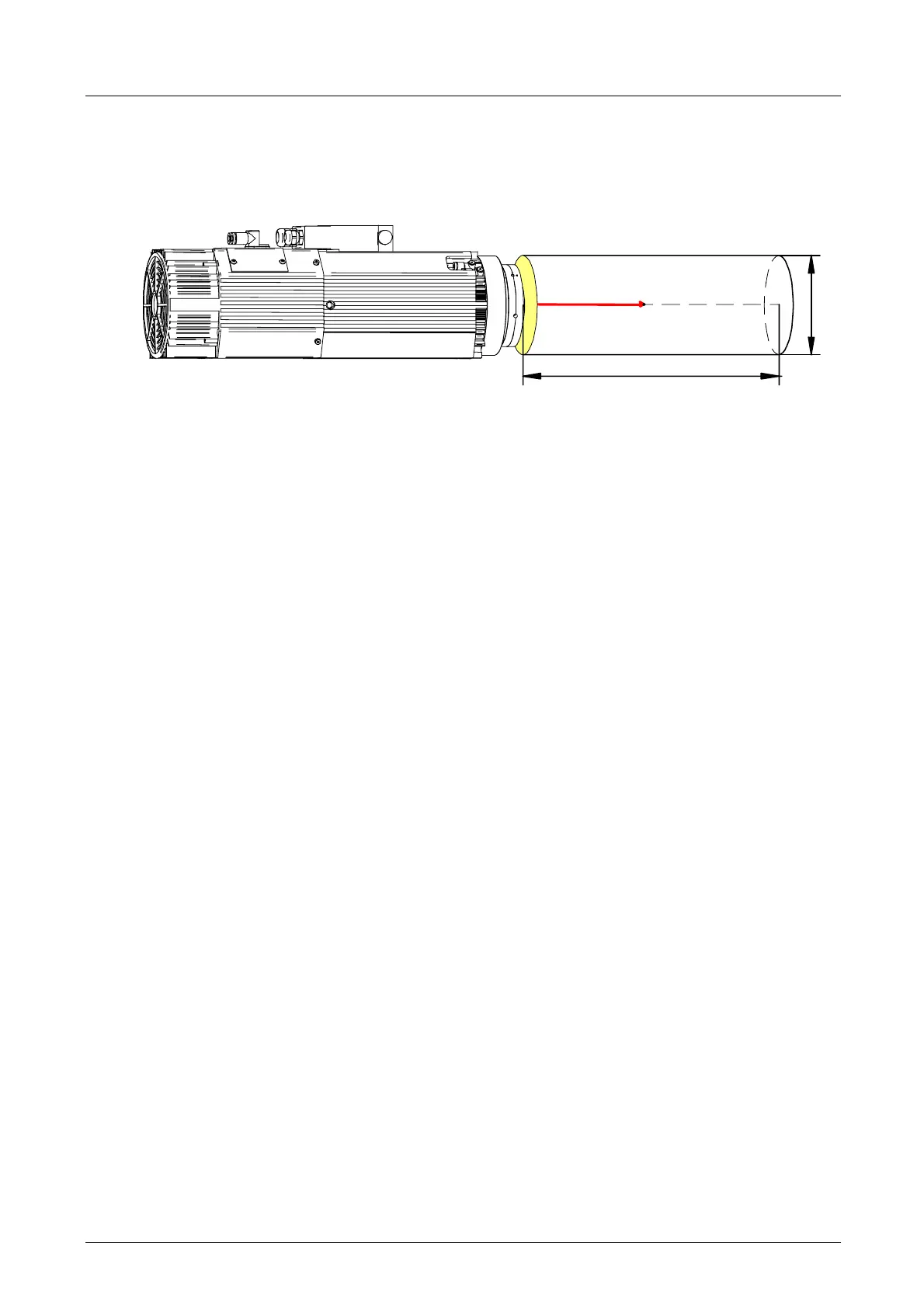

On an ES929 L ISO 30 SHORT NOSE, you want to use a pack of milling cutters comparable with a
cylinder of diameter 100mm, length 600mm and overall weight 20kg:
X
G
600
100
1. b=h/2=600/2=300mm
2. The tool is comparable with a single elementary part (cylinder), so X=b=300mm
3. The chart relating to this particular electrospindle is that in paragraph 6.7.2.5
4. The length and weight of the tool are outside the charts calculated by HSD. It will be the user's
responsibility to evaluate the maximum speed at which to work
