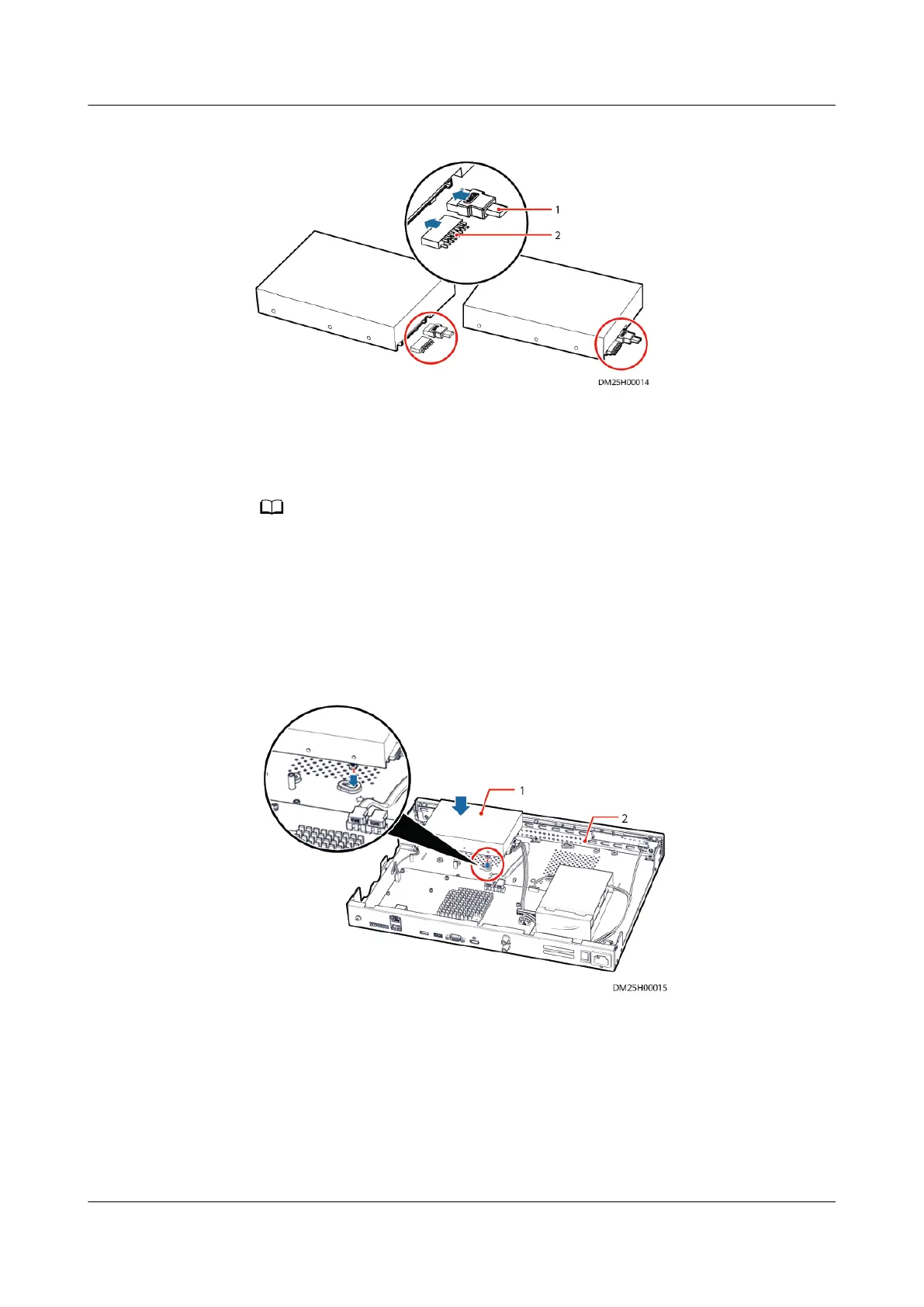

Figure 4-41 Installing the SATA cable and power cable
(1) SATA cable (2) Power cable
When the VCN510 is delivered, the SATA cable connecting to the hard disk is xed using
blue tapes. Before installing the hard disk, remove the tapes.
6. Install a disk in No. 1 position. Place the disk above the No.1 disk installation
position. Align the preinstalled screws with the cucurbit holes on the bottom
cover of the chassis. Then, horizontally place the disk. Ensure that the screws
are in the holes.
Figure 4-42 Disk installation positions
(1) No. 1 disk installation position
(2) No. 0 disk installation position
7. Push the hard disk in the direction shown in the following gure to enable the
two preinstalled screw heads to slide into the cucurbit holes.
FusionModule500 Smart Mini Data Center
User Manual (Philippines, FusionModule500-
SU61A12S) 4 Installation Guide
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 86
