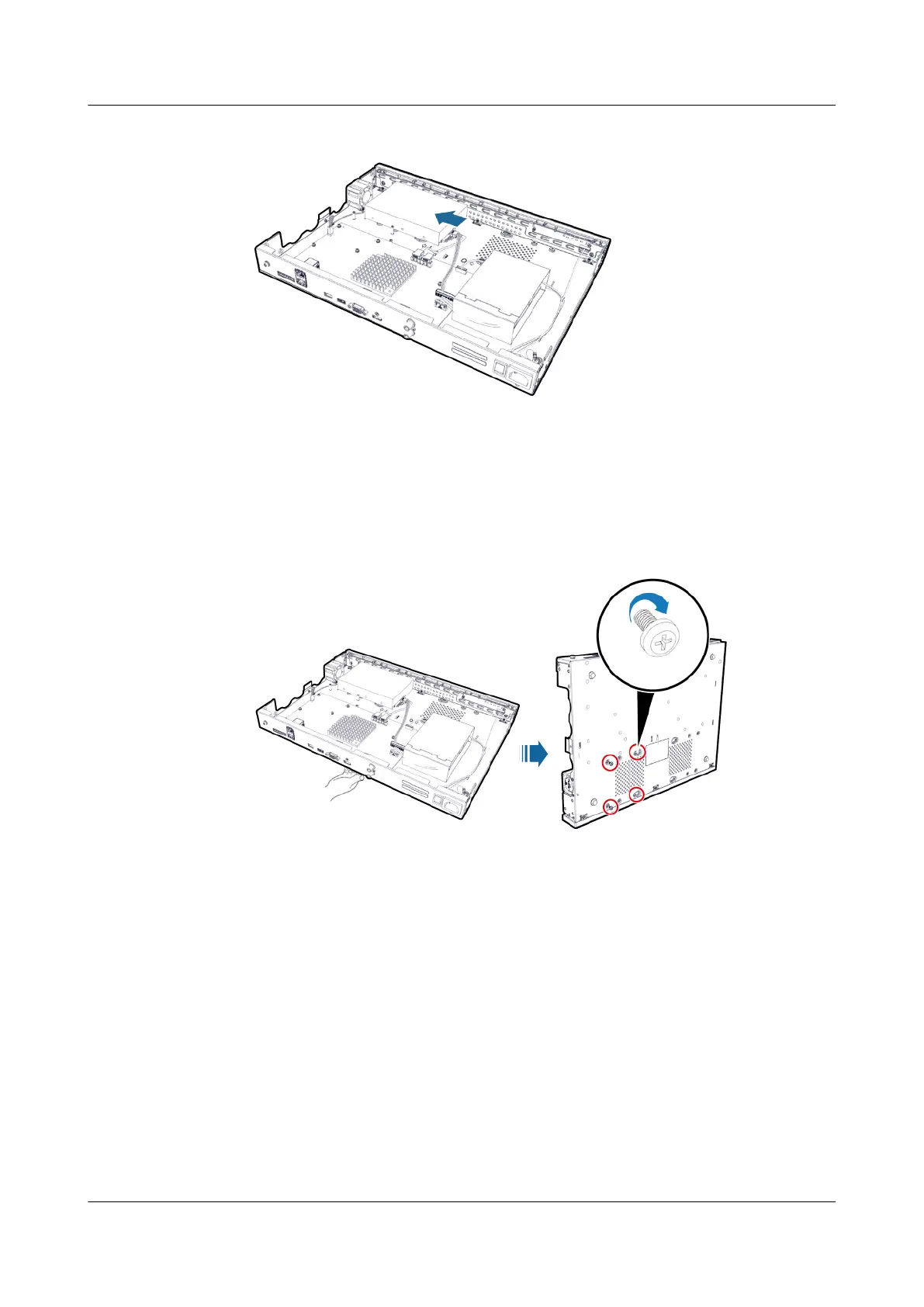

Figure 4-43 Installing a hard disk
8. Hold the disk with one hand. Use the other hand to turn over the device at a
90-degree angle. Fasten the preinstalled screws from the rear panel of the
device. Take another two #6-32UNC screws. Insert them into another two
holes on the disk (for a disk with six holes, you are advised to install the
screws into the two holes that are far away from the cable outlet) and fasten
them.
Figure 4-44 Installing a hard disk
9. Install a disk in No. 0 position. Install the disk in No.0 position in the same
way for installing a disk in No.1 position. During disk installation, ensure that
the direction for pushing the disk in No.0 position is opposite to that for
pushing the disk in No.1 position.
10. Install the upper cover of the chassis. Place the upper cover of the chassis.
Fasten the three screws on the bottom cover of the chassis and the six screws
on the left and right sides of the chassis to
x the upper cover of the chassis.
Step 2 Install the oating nuts. Determine the mounting holes for the VCN510 in the
cabinet based on the cabinet device layout diagram. Insert one end of the
oating
nut into the square hole from the inside of the cabinet to the outside of the
cabinet, and lock the lower frame of the square hole. Use a
oating nut mounting
bar to hook the other end of the oating nut and pull the oating nut until it
snaps into the upper frame of the square hole.
