A PVDU-150A1 can connect to a maximum of two SJBs. Install cables based on the
actual number of SJBs.
4. Reinstall the protective cover for the DC input circuit breakers on the PVDU.
Step 2 Connect cables between the PVDU-150A1 and the ETP48600-C5B1/DCDB.

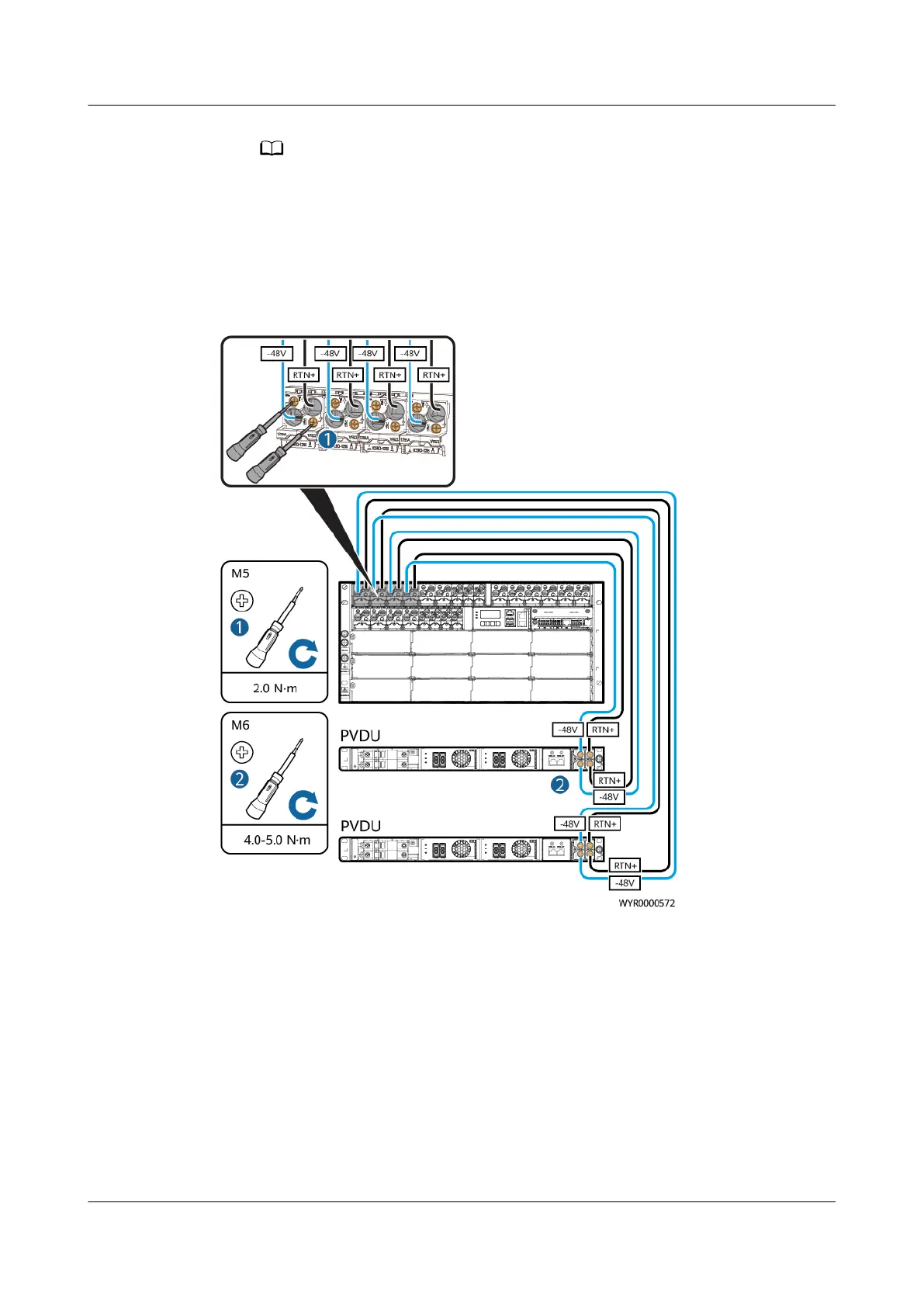

Figure 10-6 Connecting cables between the PVDU-150A1 and the ETP48600-C5B1
(5 KW)
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 10 Installing Cables
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 109
