13.2 Installing Front and Rear Sealing Plates for
Combined Cabinets
Procedure
Step 1 Assemble the front and rear sealing plates for the combined cabinets.

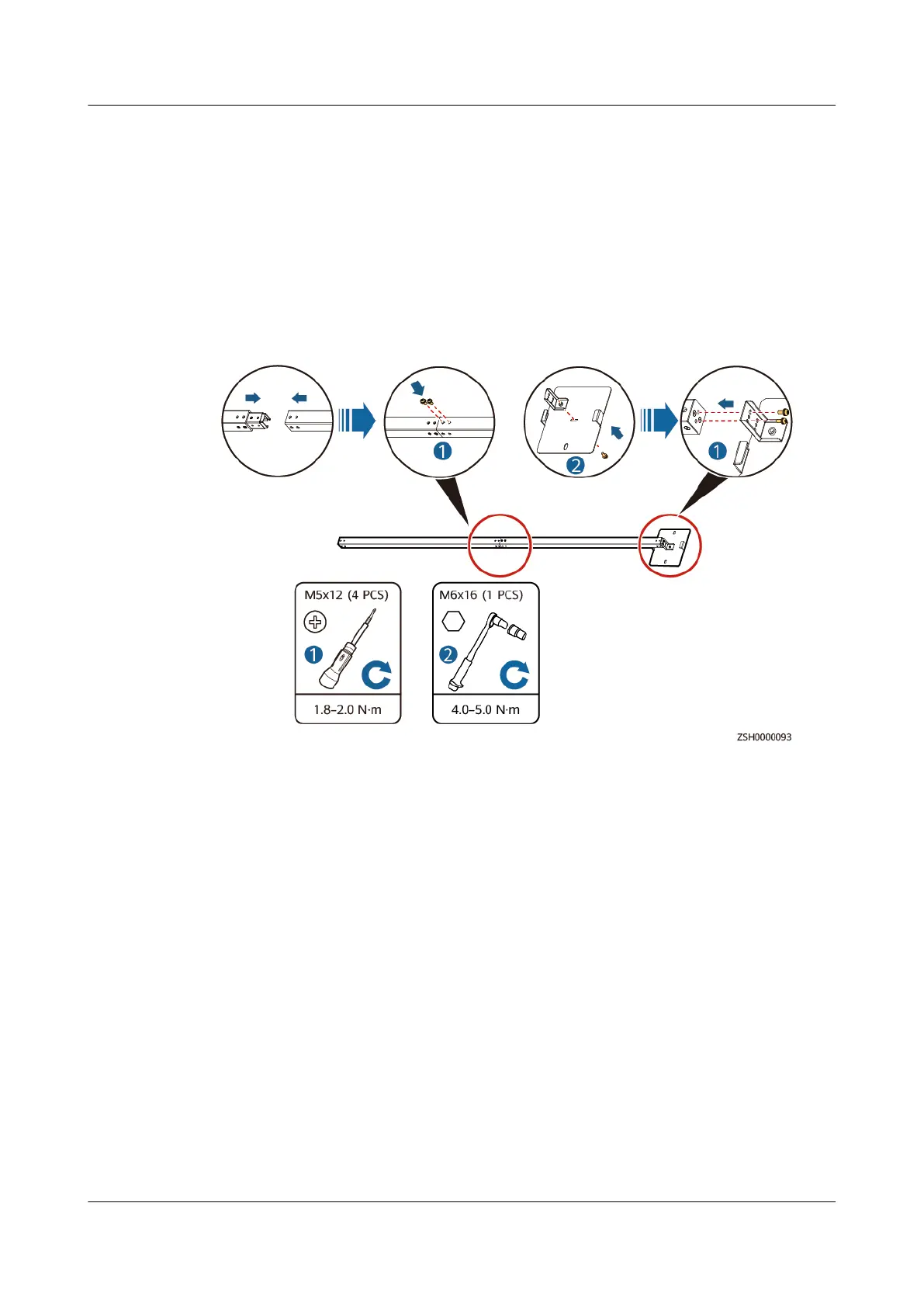

Figure 13-2 Assembling front and rear sealing plates
Step 2 Install the front and rear sealing plates for the combined cabinets.
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 13 Checking Before Leaving the Site
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 143
