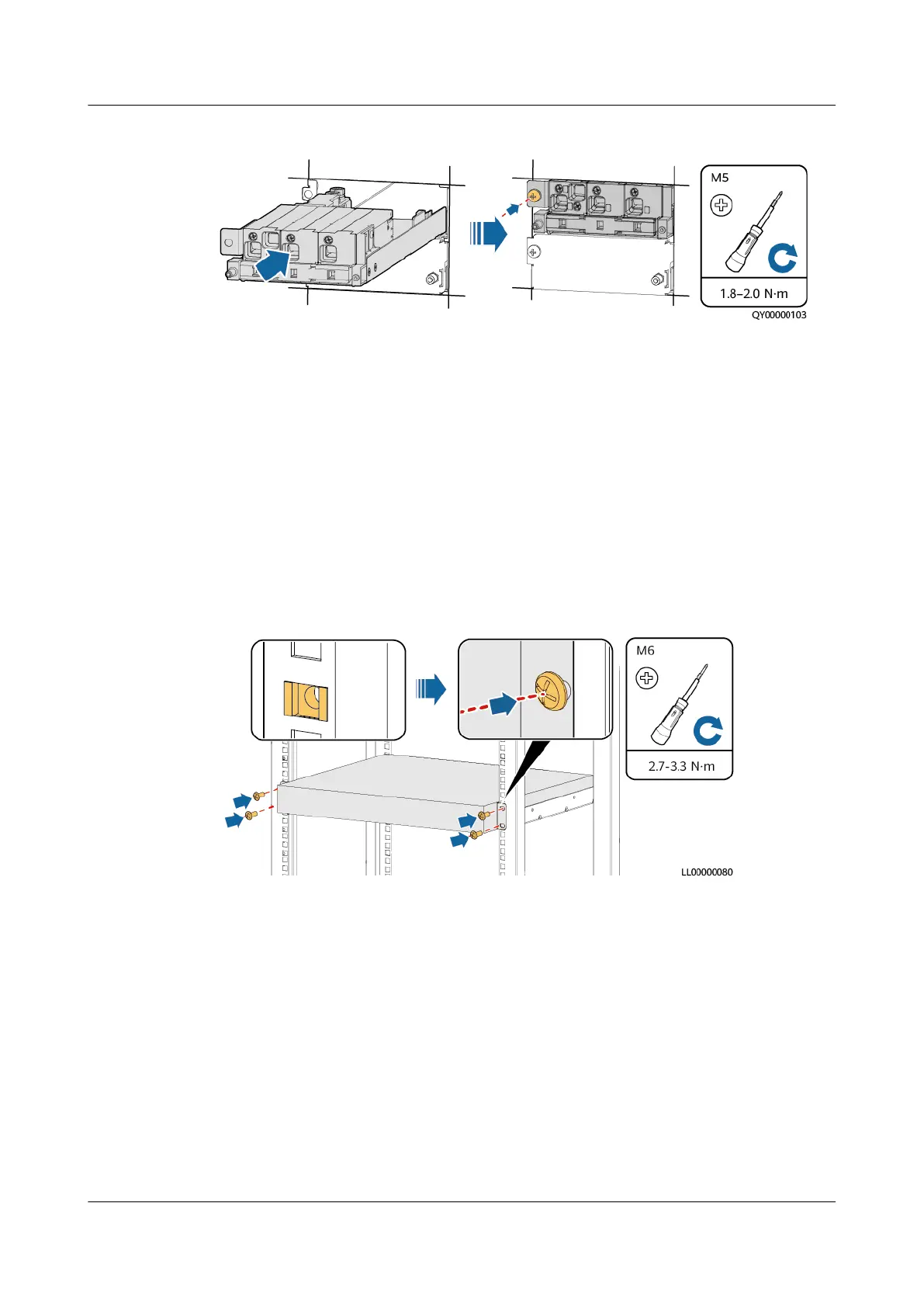

Figure 8-8 Installing an AC input module
----End
8.6 Installing a PVDU-150A1
Context
If a PVDU is required, perform the following steps to install it.
Procedure
Step 1 Install the PVDU in a 19-inch rack.
Figure 8-9 Installing a PVDU-150A1
Step 2 Install a PVDU ground cable.
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 8 Installing Components
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 92
