Item Specications
Dimensions (H x W x
D)
43.6 mm x 482.6 mm x 255 mm
Weight ≤ 5 kg
Installation mode Installed in a 19-inch rack
Cabling mode Routed in and out from the front
Maintenance mode Maintained from the front
Table 3-10 Alarm indicator description
Color Status Description
Red O No alarm is generated.
Steady on An alarm is generated.

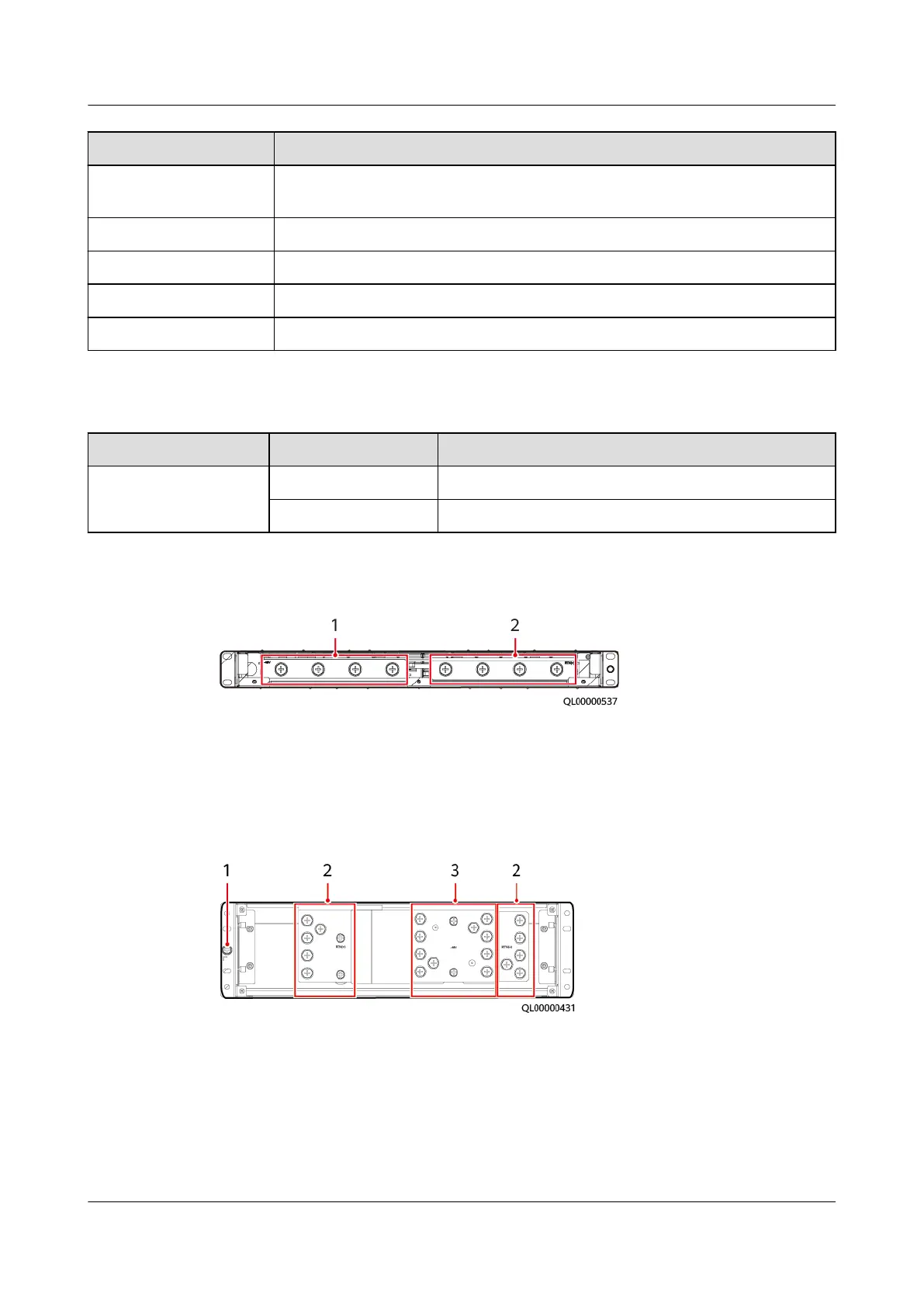

Figure 3-18 Interior (rear view)
(1) –48 V busbar
(2) RTN+ busbar
3.9 Junction Box for Lithium Batteries
Figure 3-19 Appearance
(1) Ground screw
(2) RTN+ busbar (3) –48 V busbar
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 3 Component
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 35
