3.10 AC Input Module AIU03-100C

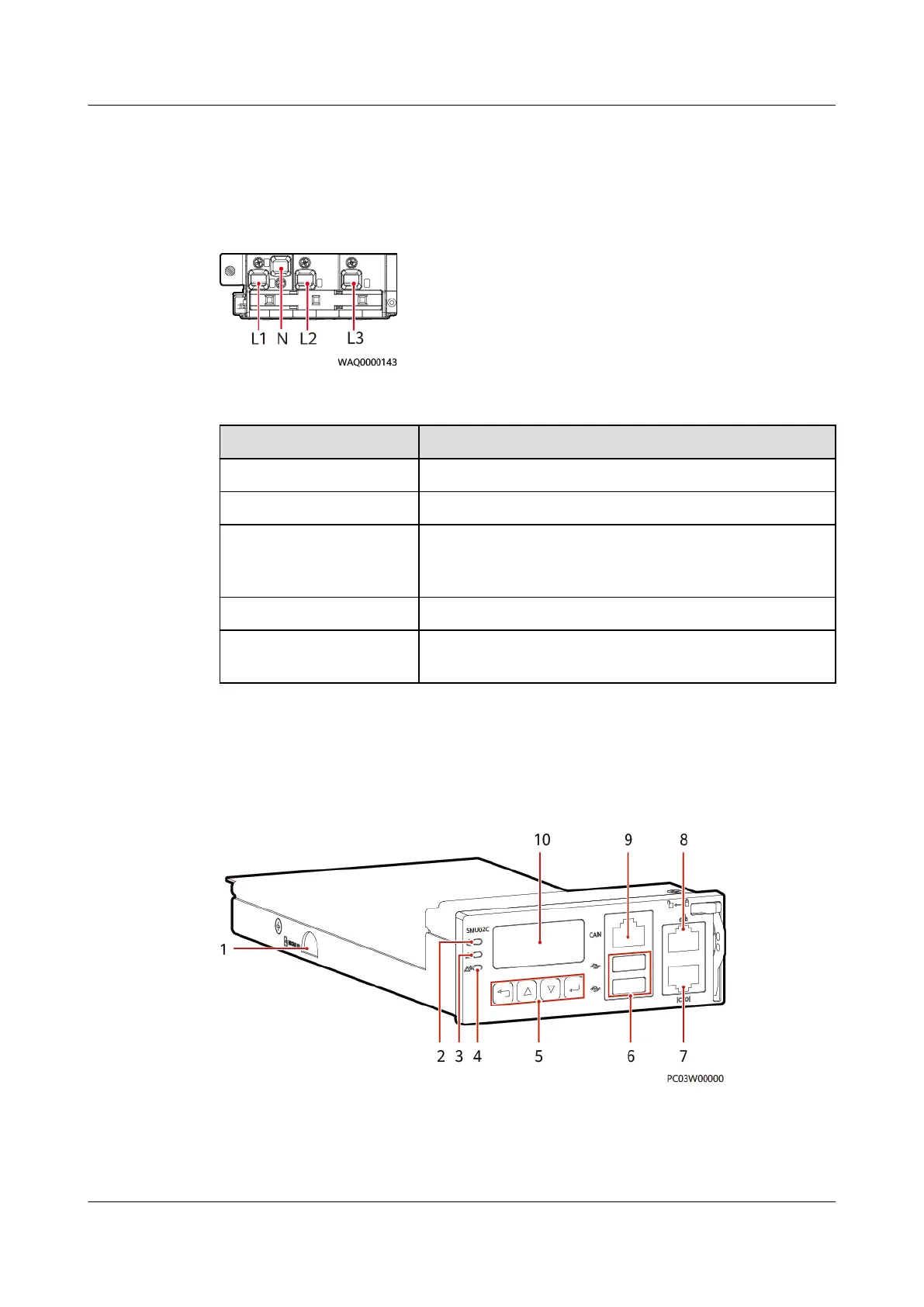

Figure 3-20 AIU03-100C exterior
Table 3-11 AIU03-100C technical specications
Item Specications
Dimensions (W x D x H) 105 mm x 275 mm x 42 mm
AC input Three phase input voltage range: 147–519 V AC
Input circuit breaker 1 x 100 A/3P MCB (When the temperature is higher
than 65°C, the maximum circuit breaker capacity is
80 A.)
Input frequency 45–65 Hz, rated value: 50 Hz/60 Hz
Surge protection Nominal lightning strike discharge current 30 kA
(8/20 μs)
3.11 SMU02C
Figure 3-21 SMU02C appearance
(1) SD card slot
(2) Run indicator (3) Minor alarm indicator
(4) Major alarm indicator (5) Buttons (6) USB ports (protected by a
security mechanism)
