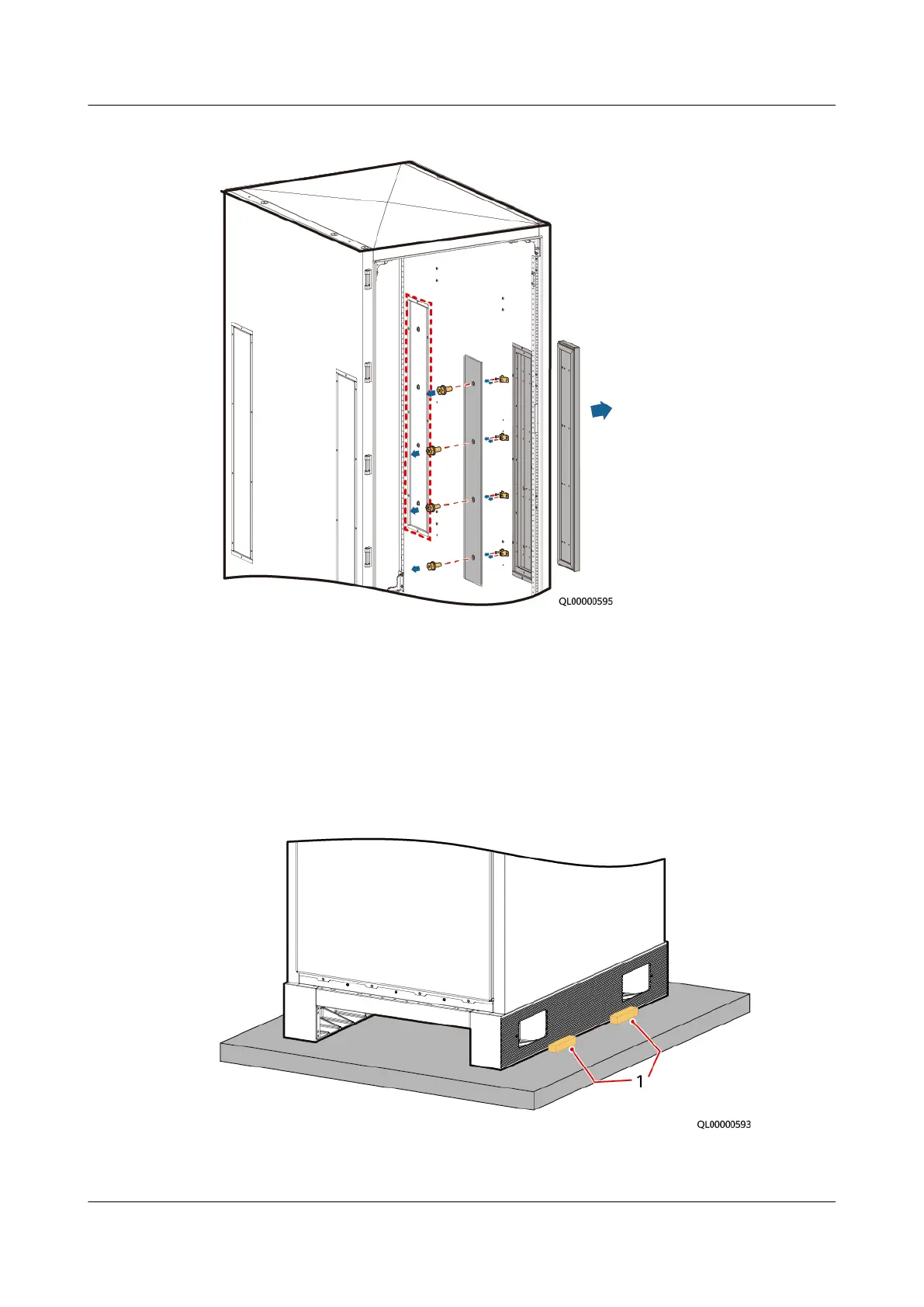

Figure 7-12 Removing sealing plates

----End

7.6.2 Securing Cabinets

Procedure

Step 1 Install distance blocks.

Figure 7-13 Installing distance blocks

(1) Distance blocks

PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,

ESC800-A1)

Installation Guide 7 Installing the Cabinet

About this Document3
