Huawei PowerCube 1000 - Installing Cables for a Reused DG

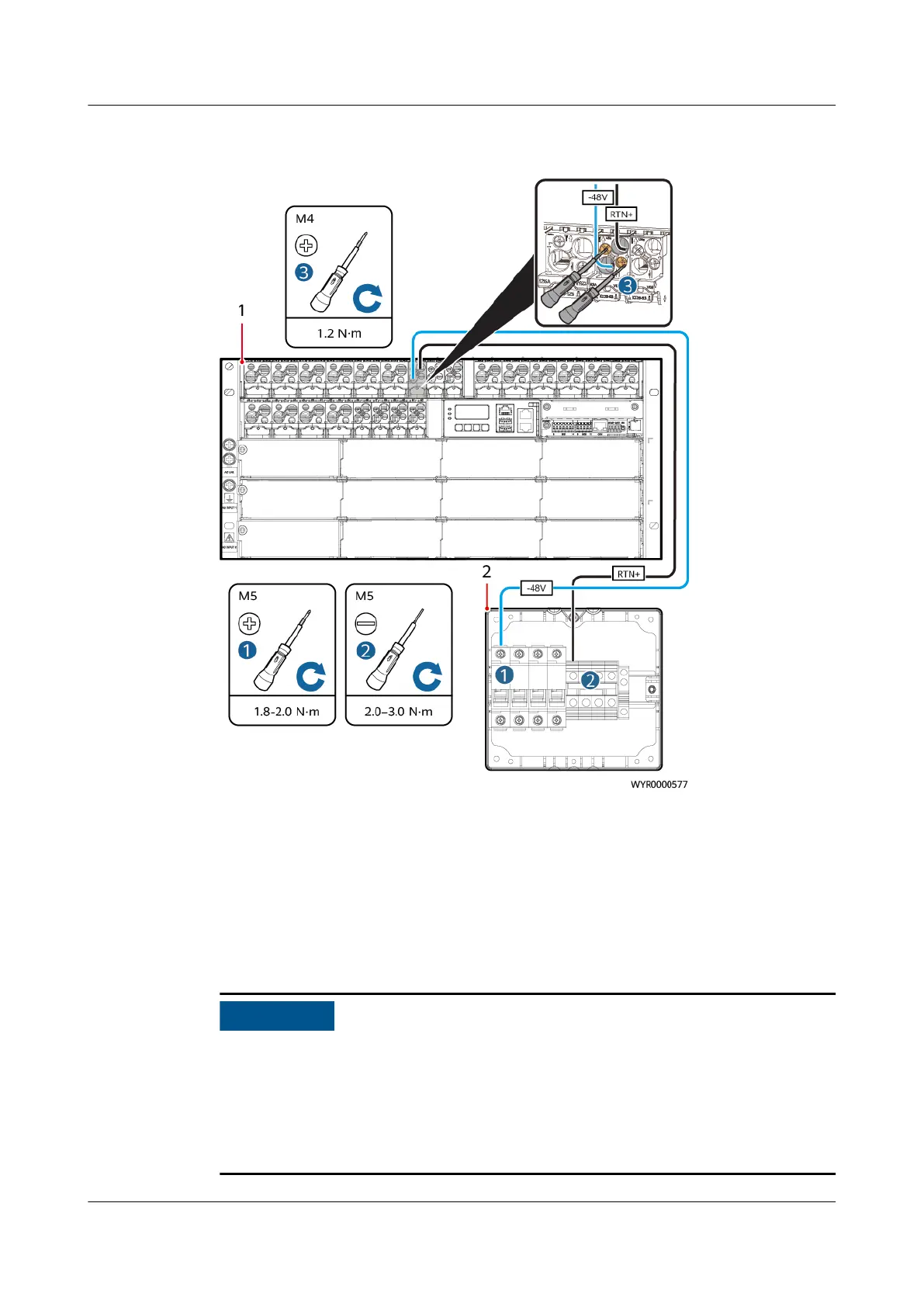

Figure 10-13 Installing cables between the ETP48600-C5B1 and the DC output
box.
(1) ETP48600-C5B1 (2) DC output box in the ESC800
----End
10.6 Installing Cables for a Reused DG
Context
NO TICE
● For single-DG scenarios, connect the DG startup, shutdown, and resetting signal
cables to the DG 1 startup, shutdown, and resetting ports on the GIM.
● For the DG that starts when the dry contact is closed, connect the DG remote
startup/shutdown signal cable to the NC and COM ports. For the DG that starts
when the dry contact is open, connect the signal cable to the NO and COM
ports.
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 10 Installing Cables
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 115
