Procedure
Step 1 Connect one end of the DG startup, shutdown, and resetting signal cables to the
DG 1 startup, shutdown, and resetting ports on the GIM respectively.
Step 2 Connect the other end by following instructions in the DG manual.

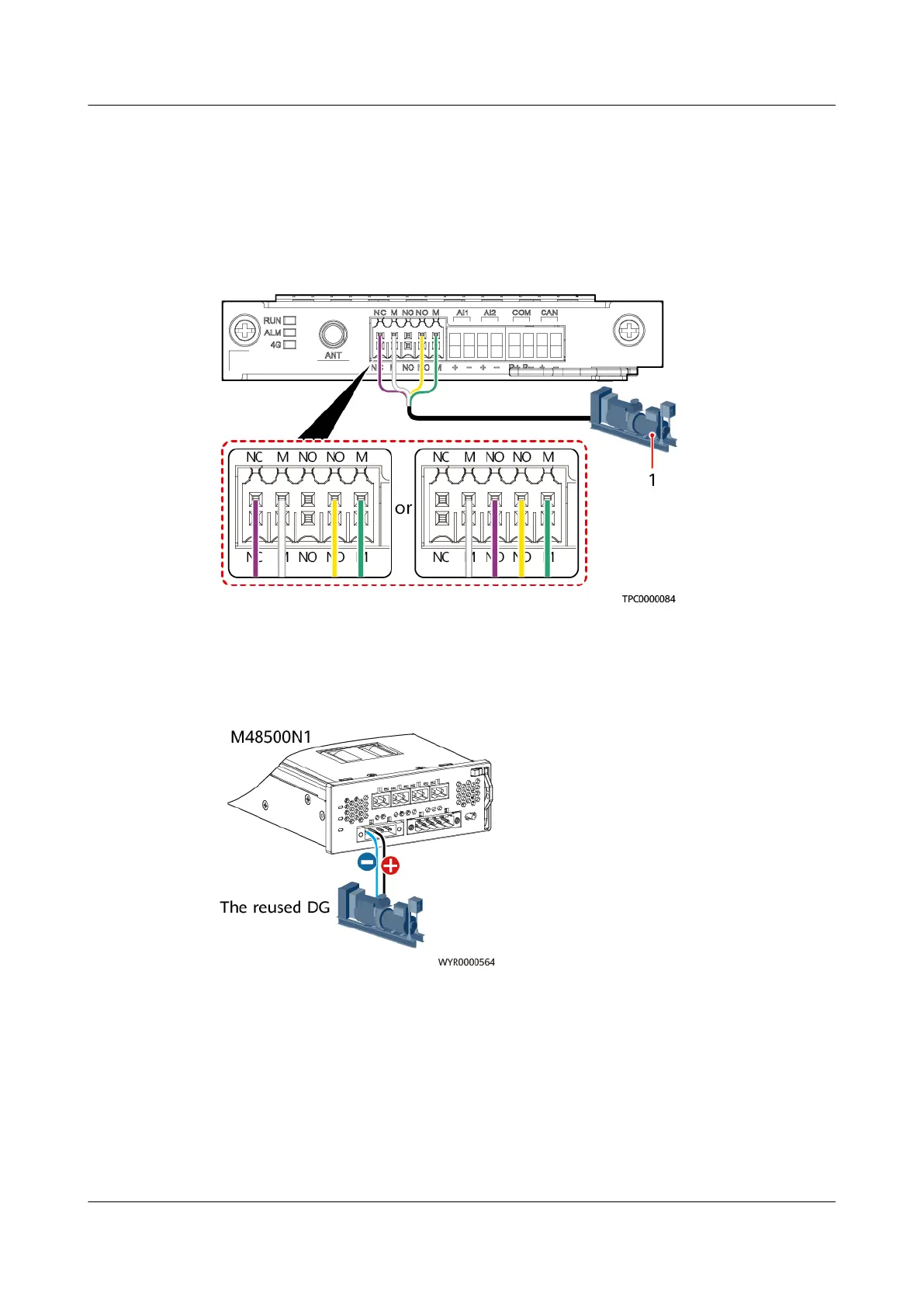

Figure 10-14 Installing control signal cables for the reused DG
(1) Reused DG
Step 3 Installing a battery charging cable for the reused DG.
Figure 10-15 Installing the power cables
Step 4 Route the part of cables that are outside the cabinet through a PVC corrugated
pipe and secure the pipe to a cable hole on the cabinet.
----End
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 10 Installing Cables
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 116
