Huawei PowerCube 1000 - PVDU-150 A1

Item Specications
Maximum input current 16.3 A (Rated value: 12.5 A)
Output voltage DC output voltage range: 12–13.2 V DC
DC output voltage range: 24–28.2 V DC
AC output voltage range: 24–26.4 V AC (rated
output frequency: 50 Hz)
Dimensions (H x W x D) 40.8 mm x 105 mm x 281 mm
Weight < 2 kg
Surge protection DC output port: ±3 kA in dierential mode, ±5 kA in
common mode
3.17 PVDU-150A1

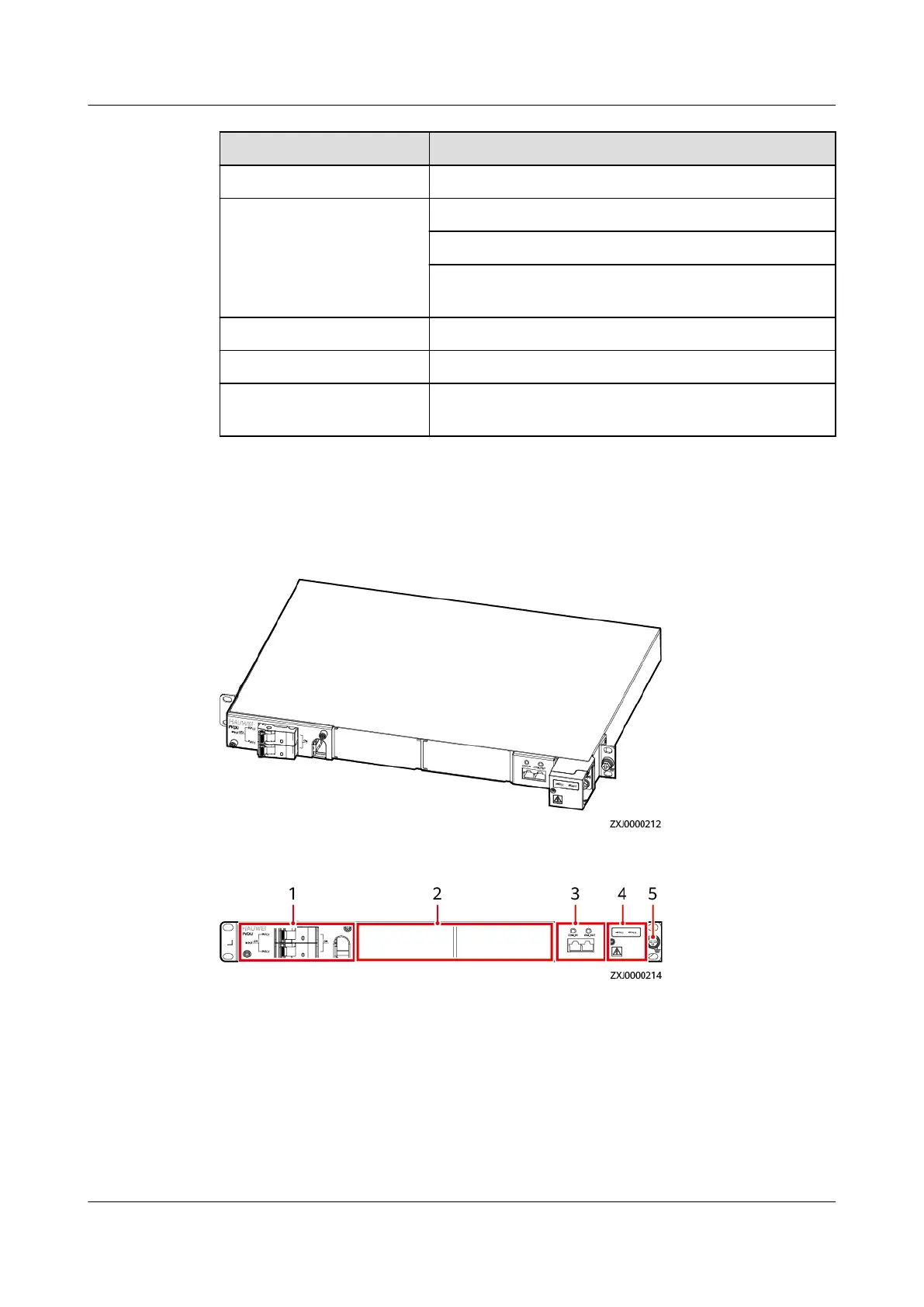

Figure 3-32 PVDU-150A1 exterior (BOM number: 02312VQE-001)
Figure 3-33 PVDU-150A1 interior (BOM number: 02312VQE-001)
(1) Solar input circuit breakers
(2) Space for SSUs (3) Network ports
(4) DC output wiring terminal (5) Ground screw
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
