EMMA Networking

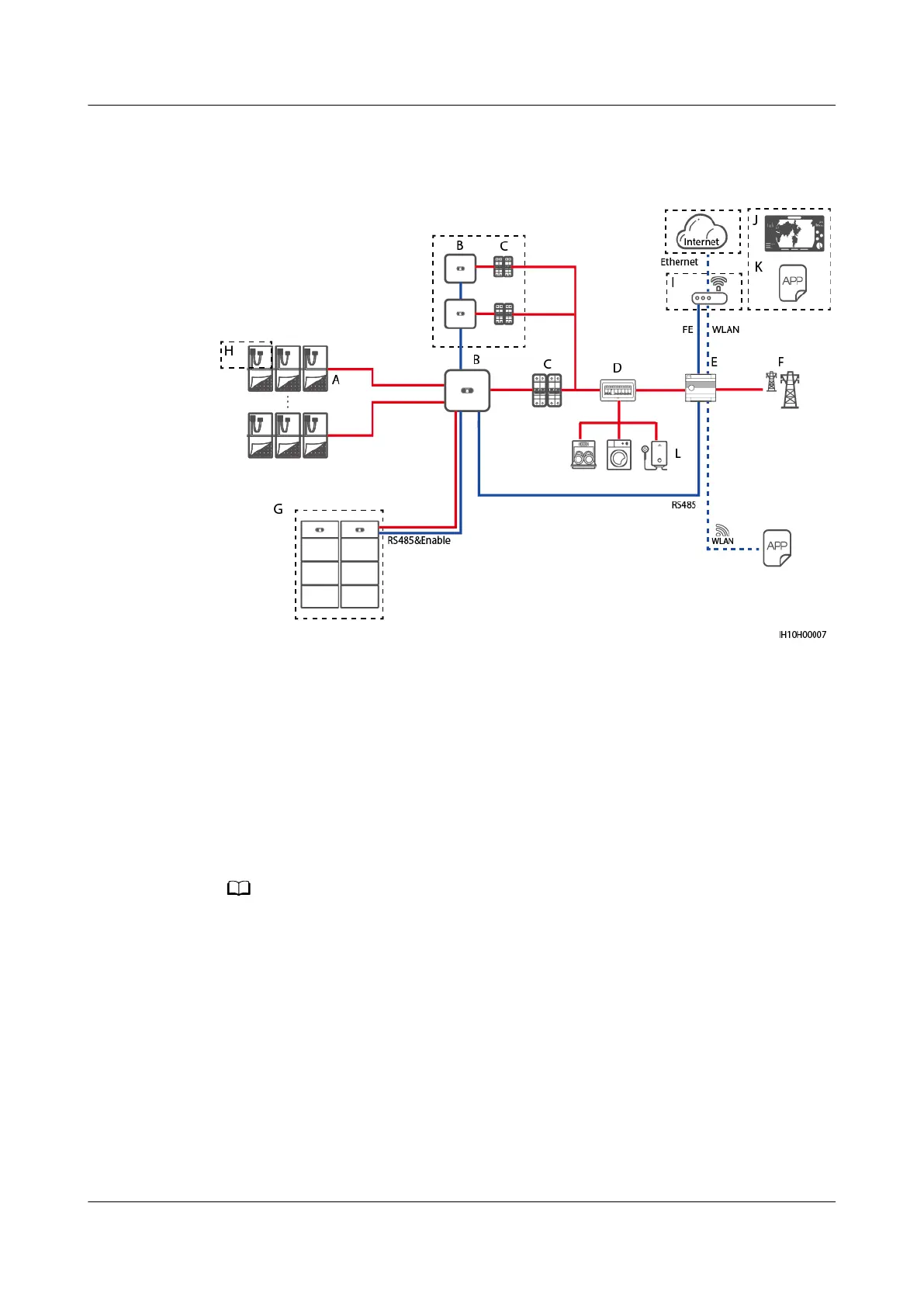

Figure 2-3 EMMA networking (the components in dashed boxes are optional)
(A) PV string (B) SUN2000 (C) AC switch
(D) AC PDU (E) EMMA (F) Power grid
(G) Battery (H) Optimizer (I) Router
(J) FusionSolar
SmartPVMS
(K) FusionSolar app (L) Load
NO TE
For details about EMMA networking, see Residential Smart PV Solution Quick Guide
(Three-Phase PV+ESS Scenario + EMMA Networking) or Residential Smart PV Solution
User Manual (EMMA).
