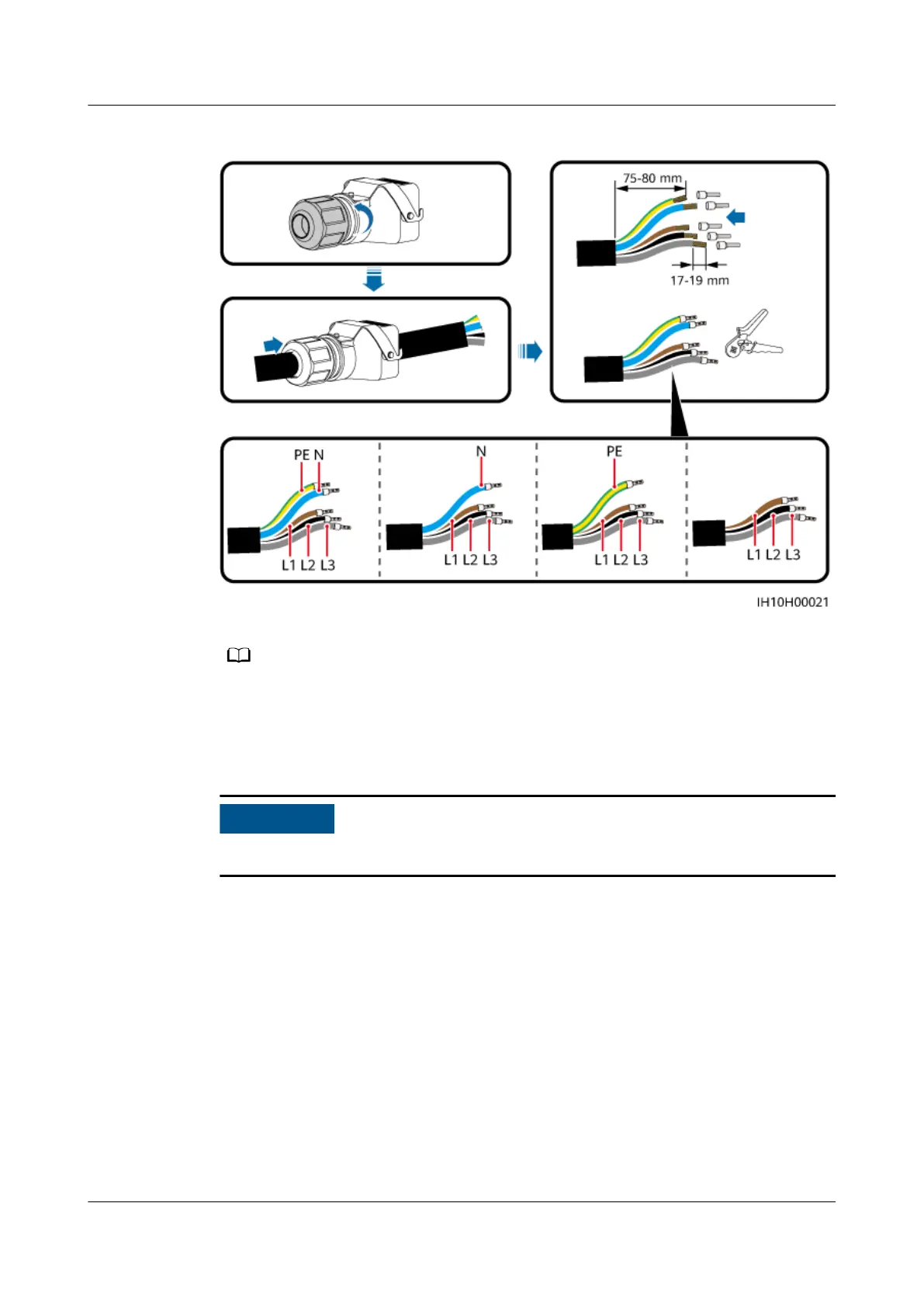

Figure 5-4 Connecting the AC output power cable to the AC connector
NO TE
The cable colors shown in the gures are for reference only. Select an appropriate cable
according to the local standards.
Step 2 Connect the AC connector together with the AC output power cable to the AC
output port.
NO TICE
Ensure that the AC connector is connected securely.
SUN2000-(5K-12K)-MAP0 Series
User Manual 5 Electrical Connections
Issue 01 (2024-05-13) Copyright © Huawei Digital Power Technologies Co., Ltd. 48
