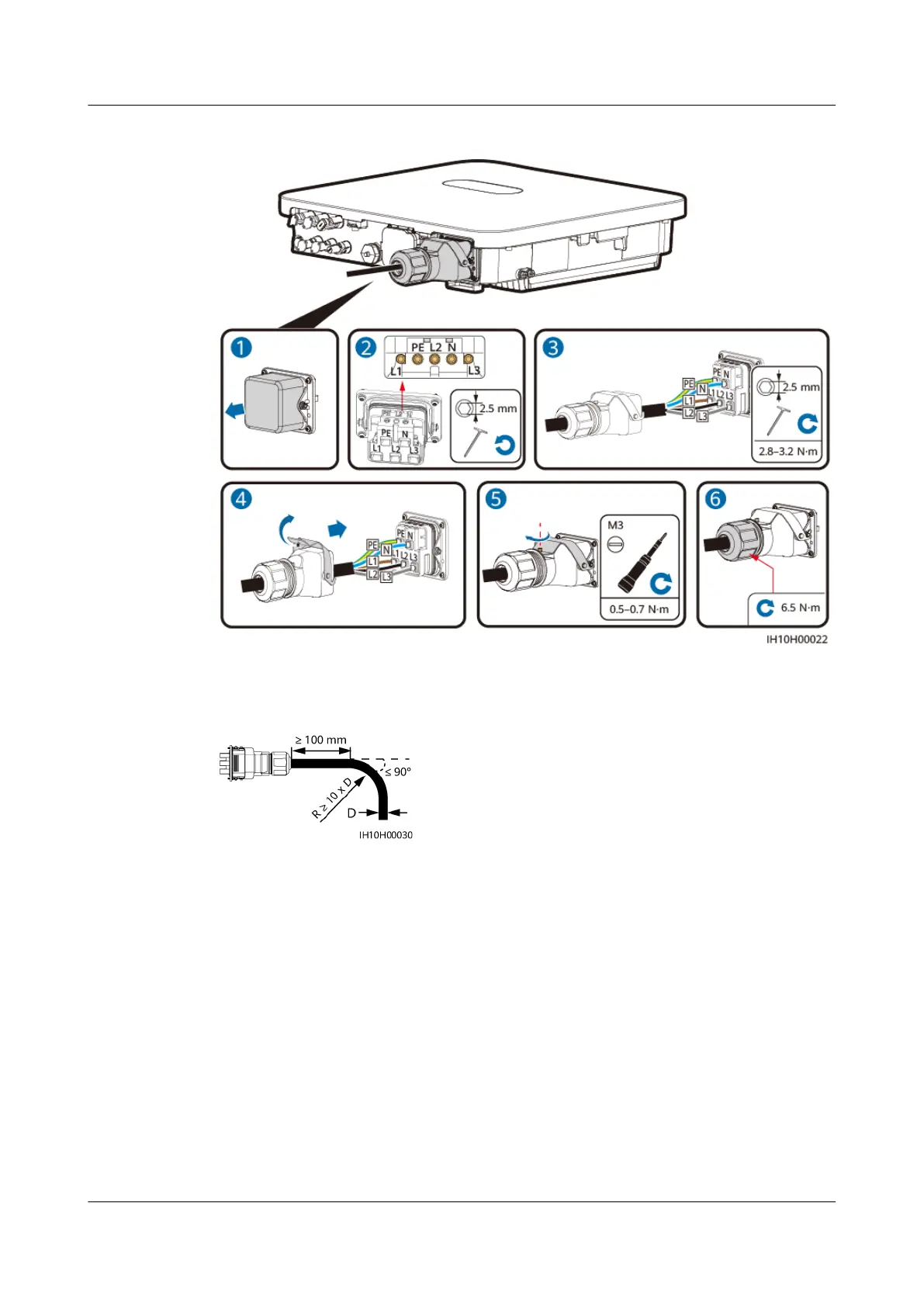

Figure 5-5 Securing the AC connector
Step 3 Check the route of the AC output power cable.
Figure 5-6 Cabling requirements
----End
Disconnection
Perform the steps in reverse order to disconnect the cable.
SUN2000-(5K-12K)-MAP0 Series
User Manual 5 Electrical Connections
Issue 01 (2024-05-13) Copyright © Huawei Digital Power Technologies Co., Ltd. 49
