The output of the PV string connected to the inverter cannot be grounded. Ensure
that the PV module output is well insulated to ground.

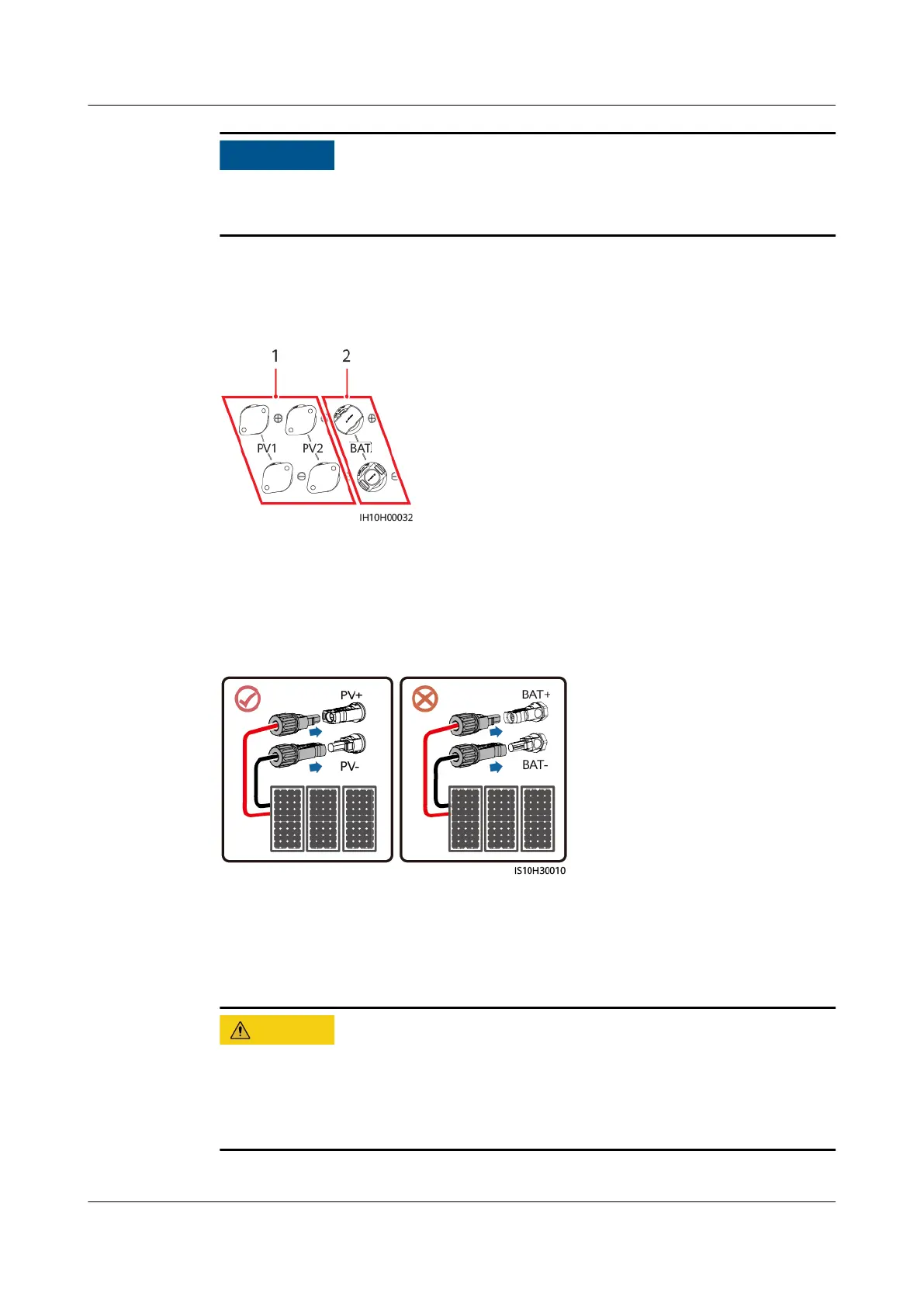

Terminal Description
Figure 5-7 Terminals
(1) DC input terminals (2) Battery terminals
Figure 5-8 Connection
Procedure
Step 1 Assemble DC connectors.
Use the positive and negative metal terminals and DC connectors delivered with
the inverter. Using incompatible positive and negative metal terminals and DC
connectors may result in serious consequences. The resulting device damage is not
covered by the product warranty.
