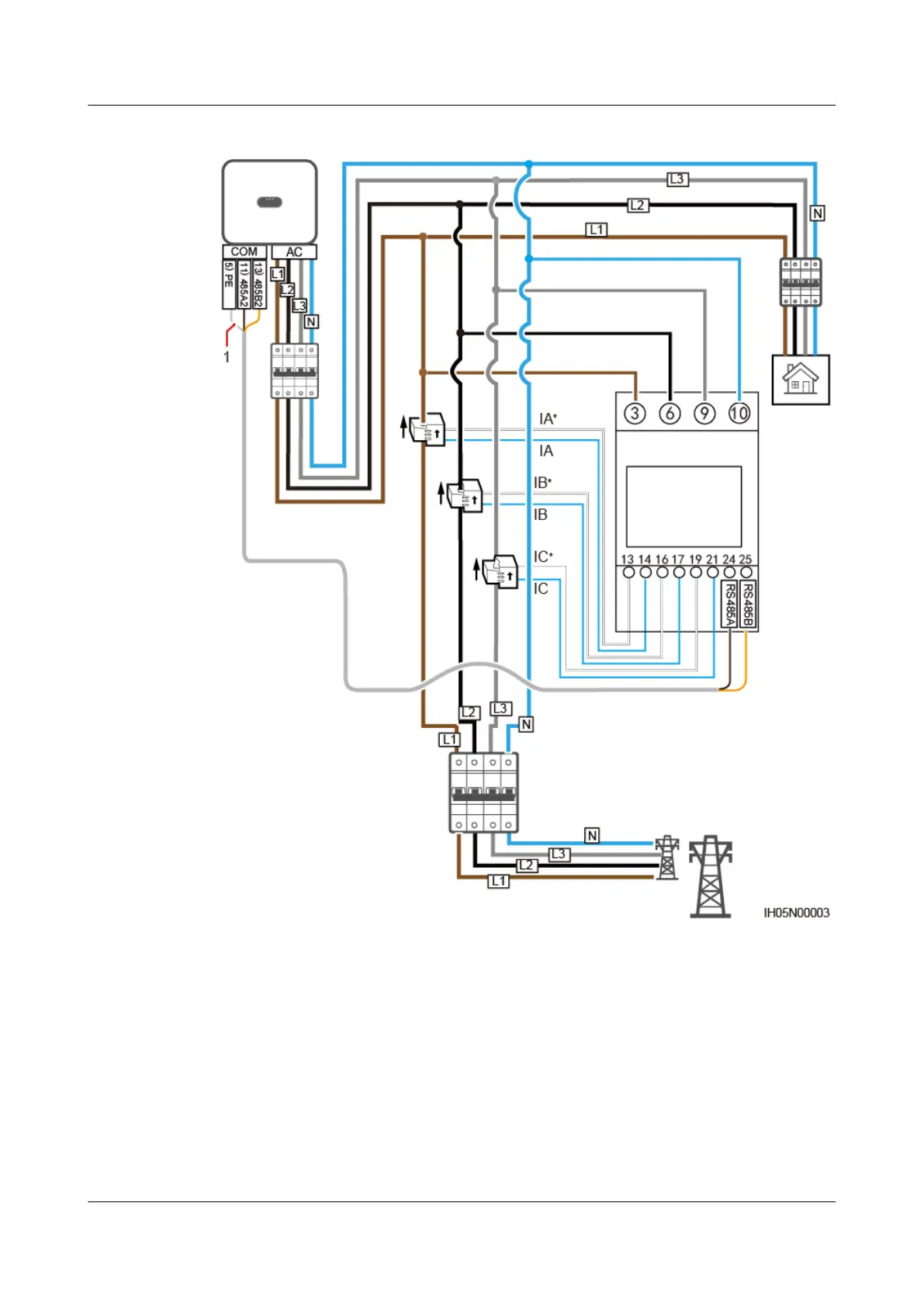

Figure 5-23 Three-phase, four-wire connection (Smart Dongle networking)
● The following gures show the cable connections between the inverter and
DTSU666-HW and YDS60-80 power meters.
SUN2000-(5K-12K)-MAP0 Series
User Manual 5 Electrical Connections
