Procedure
Step 1 Connect the signal cable to the signal cable terminal.

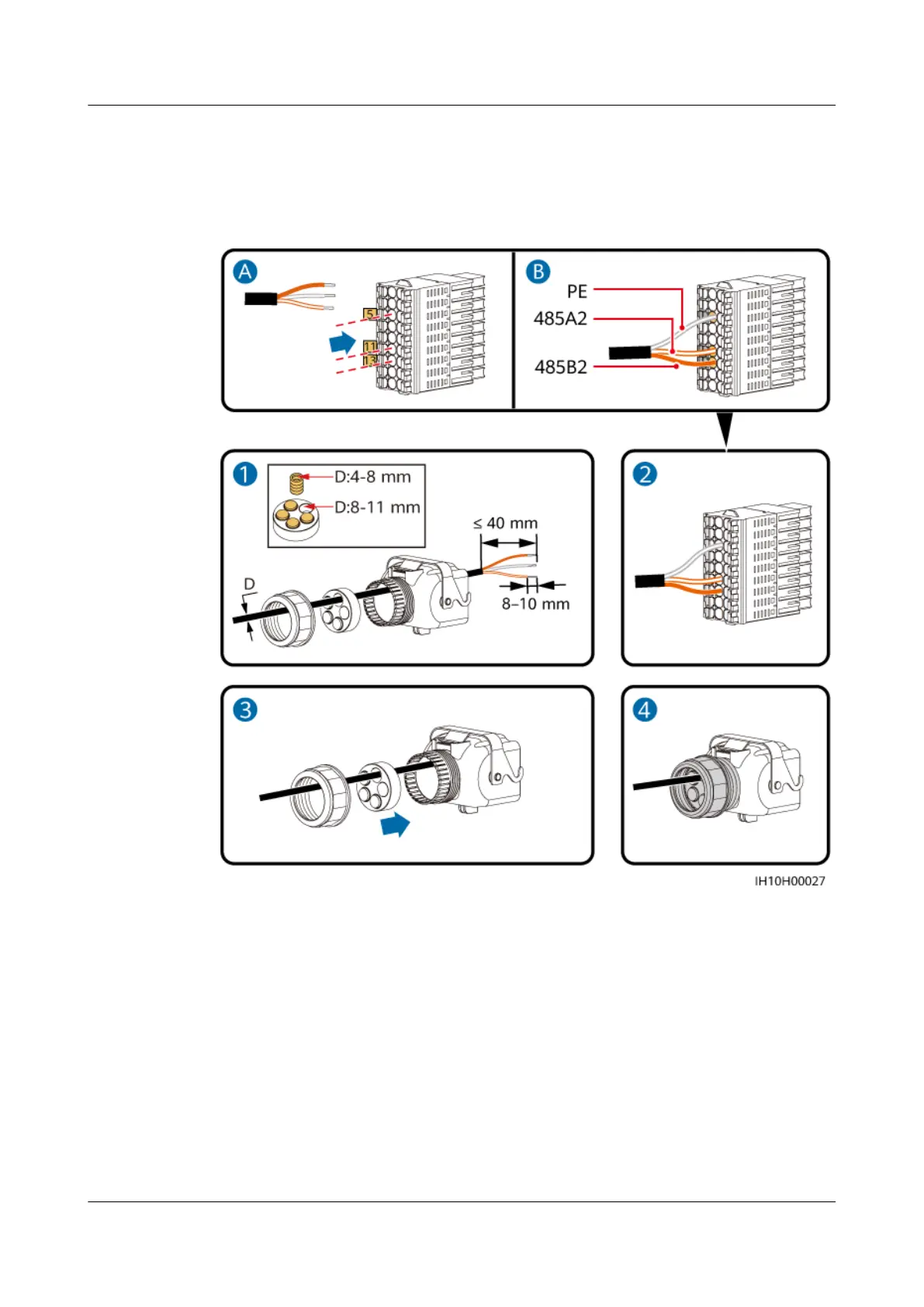

Figure 5-26 Installing the cable
Step 2 Connect the signal cable connector to the COM port.
SUN2000-(5K-12K)-MAP0 Series
User Manual 5 Electrical Connections
Issue 01 (2024-05-13) Copyright © Huawei Digital Power Technologies Co., Ltd. 69
