NO TICE
● Ensure that the cable jacket is inside the connector.
● Insert the exposed core wires completely into the holes.
● Connect the AC output cable securely. Otherwise, the device may fail to operate
properly or the AC connector may be damaged.
● Ensure that the cable is not twisted.

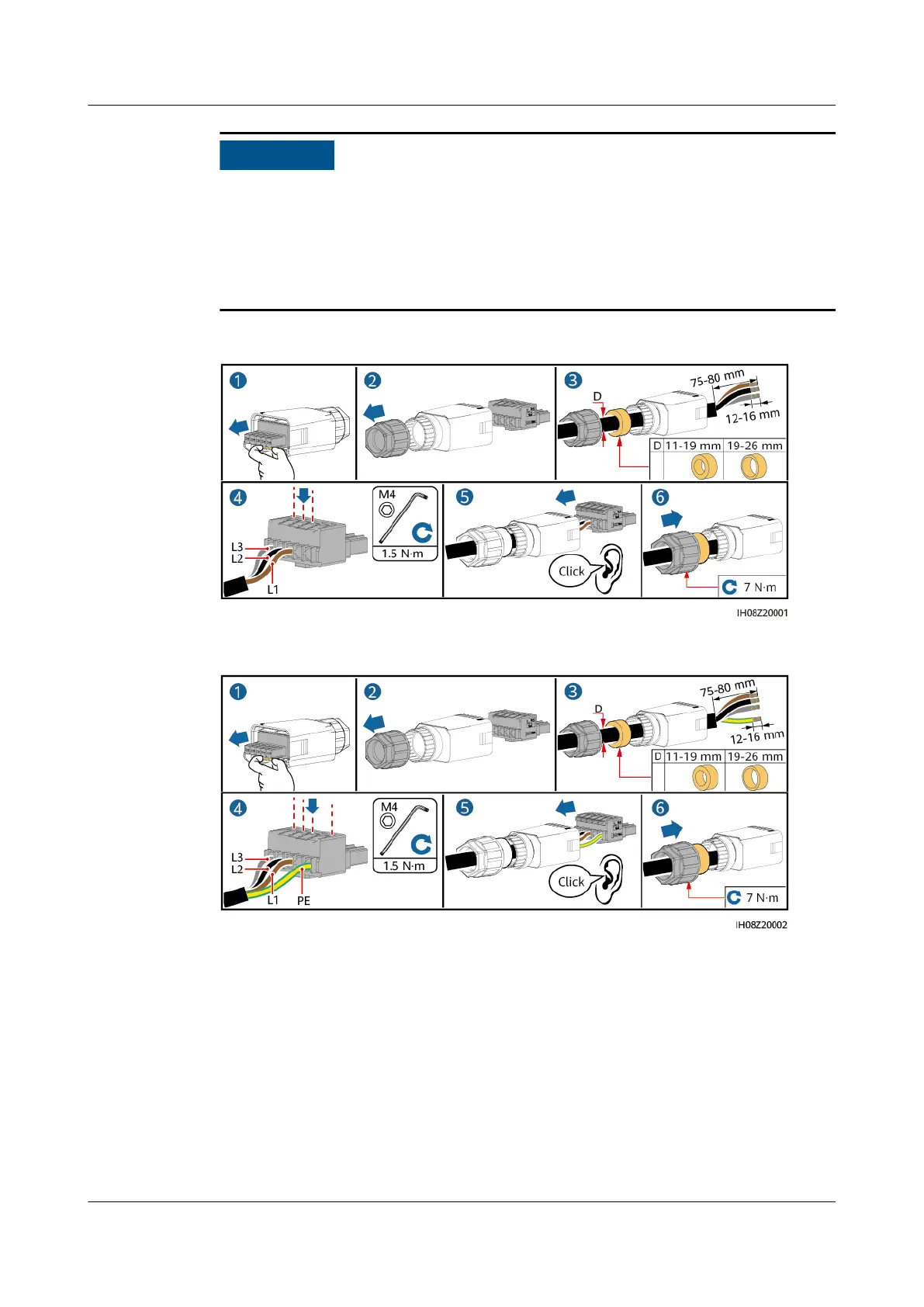

Figure 5-5 Three-core cable (L1, L2, and L3)
Figure 5-6 Four-core cable (L1, L2, L3, and PE)
SUN2000-(12K-25K)-MB0 Series
User Manual 5 Electrical Connections
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 43

Huawei SUN2000 MB0 Series Specifications

General

Type	String Inverter
Max Input Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Number of MPPTs	2
Max Input Current per MPPT	26 A
Rated Output Frequency	50 Hz / 60 Hz
Max Efficiency	98.6%
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Cooling	Natural Convection
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Cooling Method	Natural Convection
Protection Level	IP65
Model	SUN2000
Rated Output Voltage	230 V / 400 V
Humidity	0% - 100%
Communication	RS485
