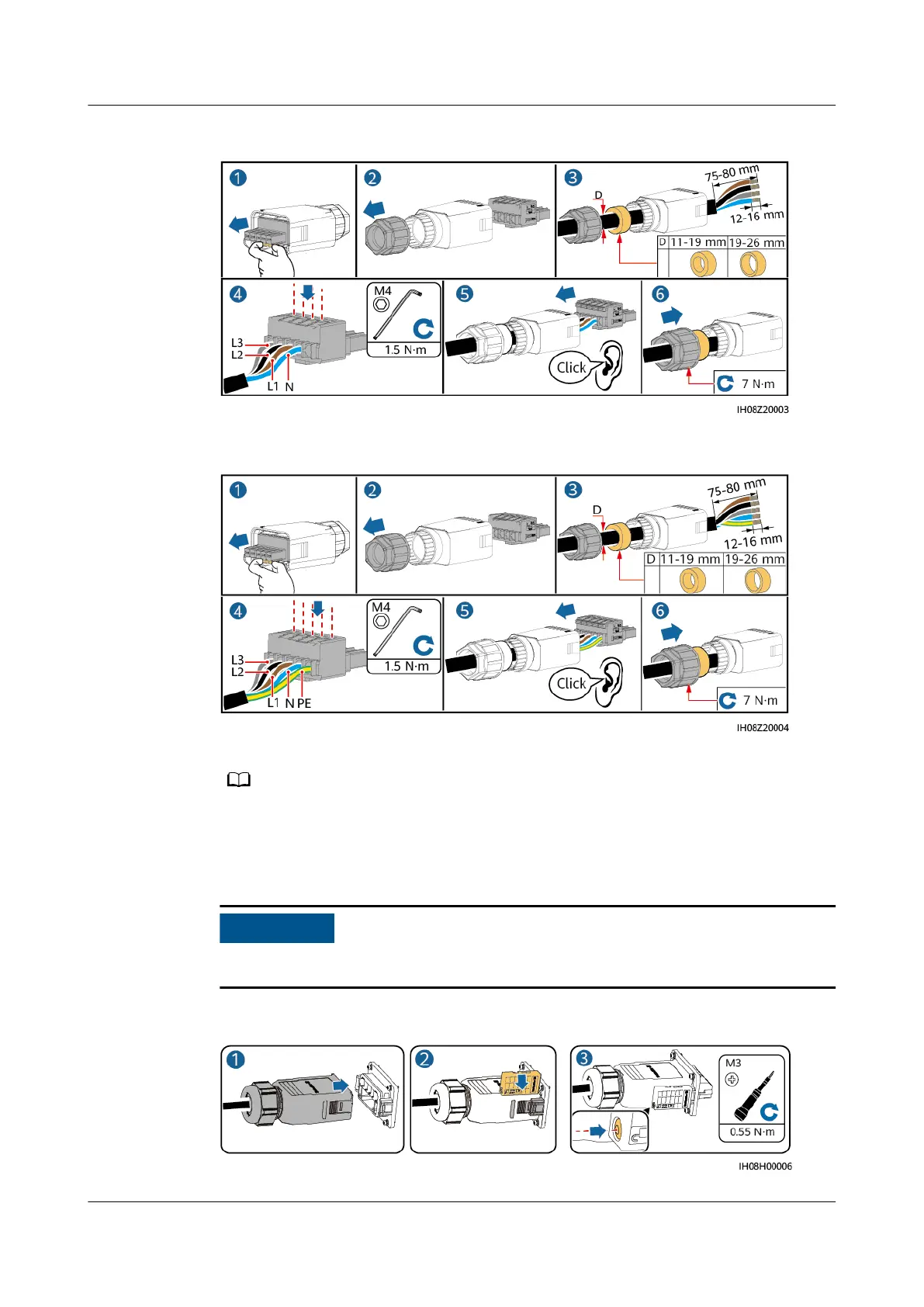

Figure 5-7 Four-core cable (L1, L2, L3, and N)
Figure 5-8 Five-core cable (L1, L2, L3, N, and PE)
The cable colors shown in the gures are for reference only. Select an appropriate cable
according to the local standards.
Step 2 Connect the AC connector to the AC output port.
Ensure that the AC connector is connected securely.
Figure 5-9 Securing the AC connector
SUN2000-(12K-25K)-MB0 Series
User Manual 5 Electrical Connections
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 44
