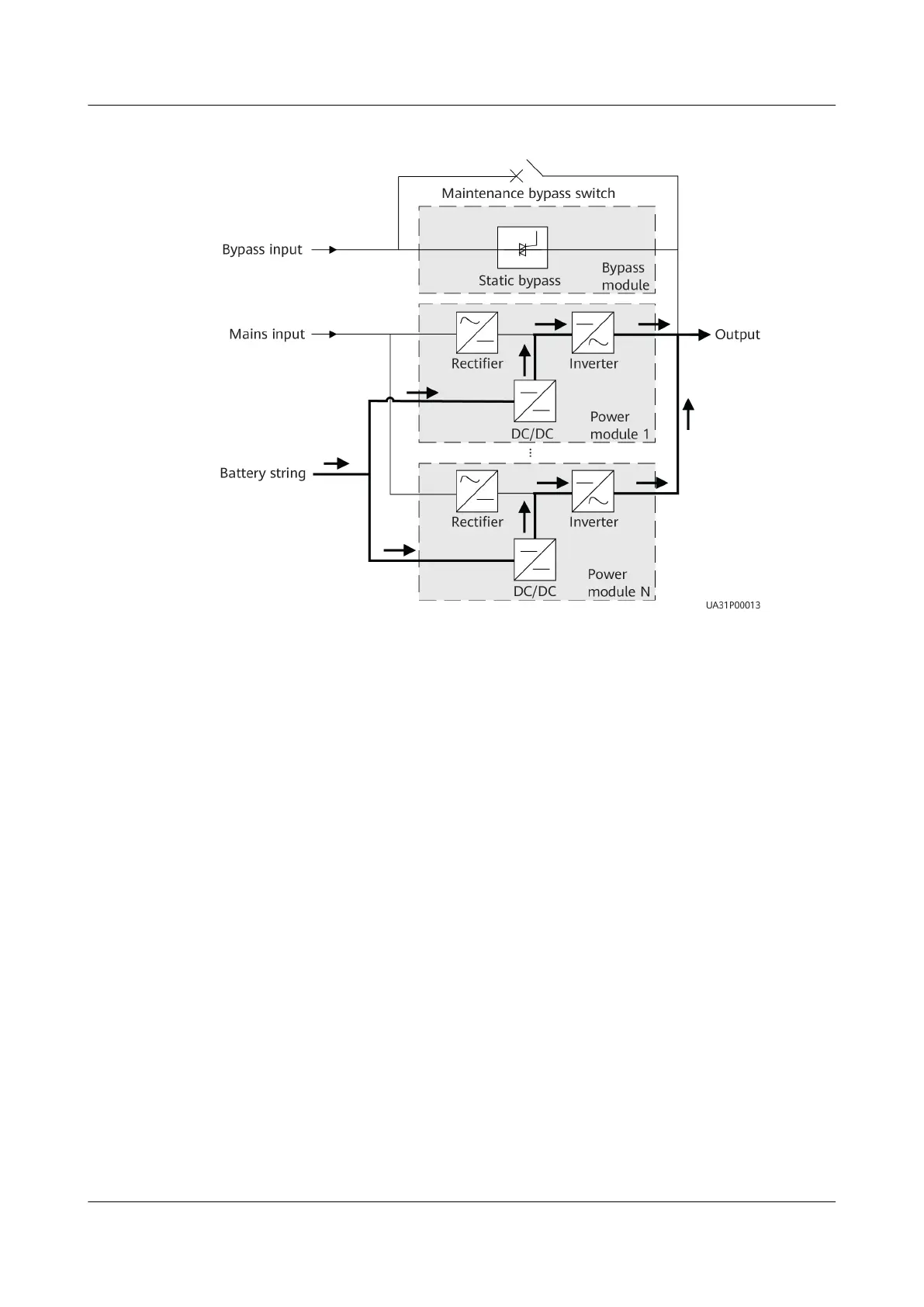

Figure 2-5 UPS conceptual diagram in battery mode
2.2.2.4 Maintenance Bypass Mode
When the UPS works in maintenance bypass mode, the current ows through the
maintenance bypass instead of the power module. You can maintain the circuit
inside the cabinet.
UPS5000-E-(30 kVA–120 kVA)-FM
User Manual 2 Overview
Issue 03 (2022-01-30) Copyright © Huawei Technologies Co., Ltd. 20
