3.4.1 Installing the UPSs
Context
NO TICE
When installing multiple cabinets, install connecting kits to combine and secure
the cabinets.
Procedure
Step 1 Install the UPSs in a parallel system using the single UPS installation method.
Step 2 Unscrew the connecting kit and put it through the reserved holes to connect the
two UPSs and then tighten the screws on the kit, as shown in Figure 3-41.

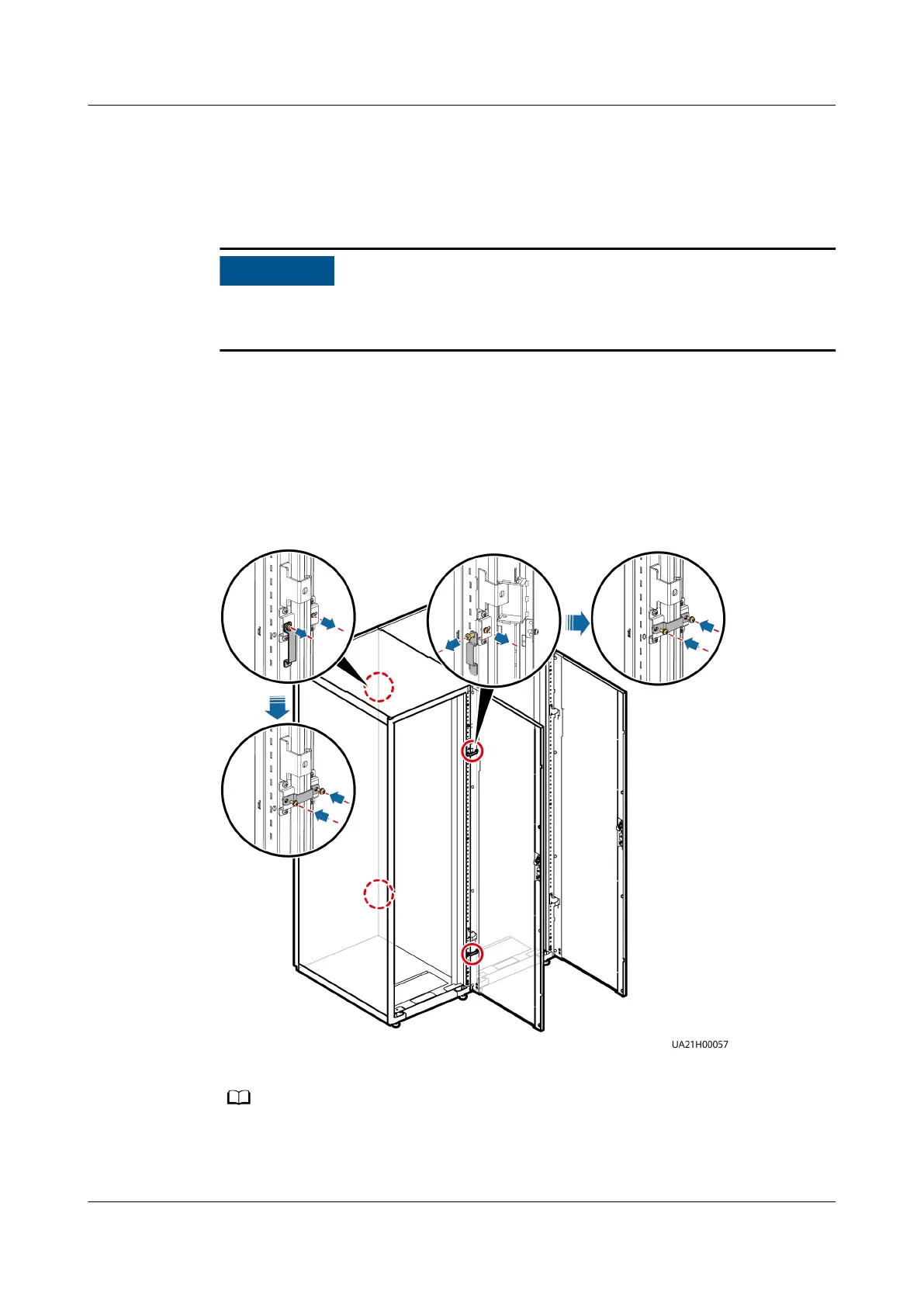

Figure 3-41 Installing connecting kits
NO TE
Connecting kits also need to be installed at the rear of the UPSs.
----End
