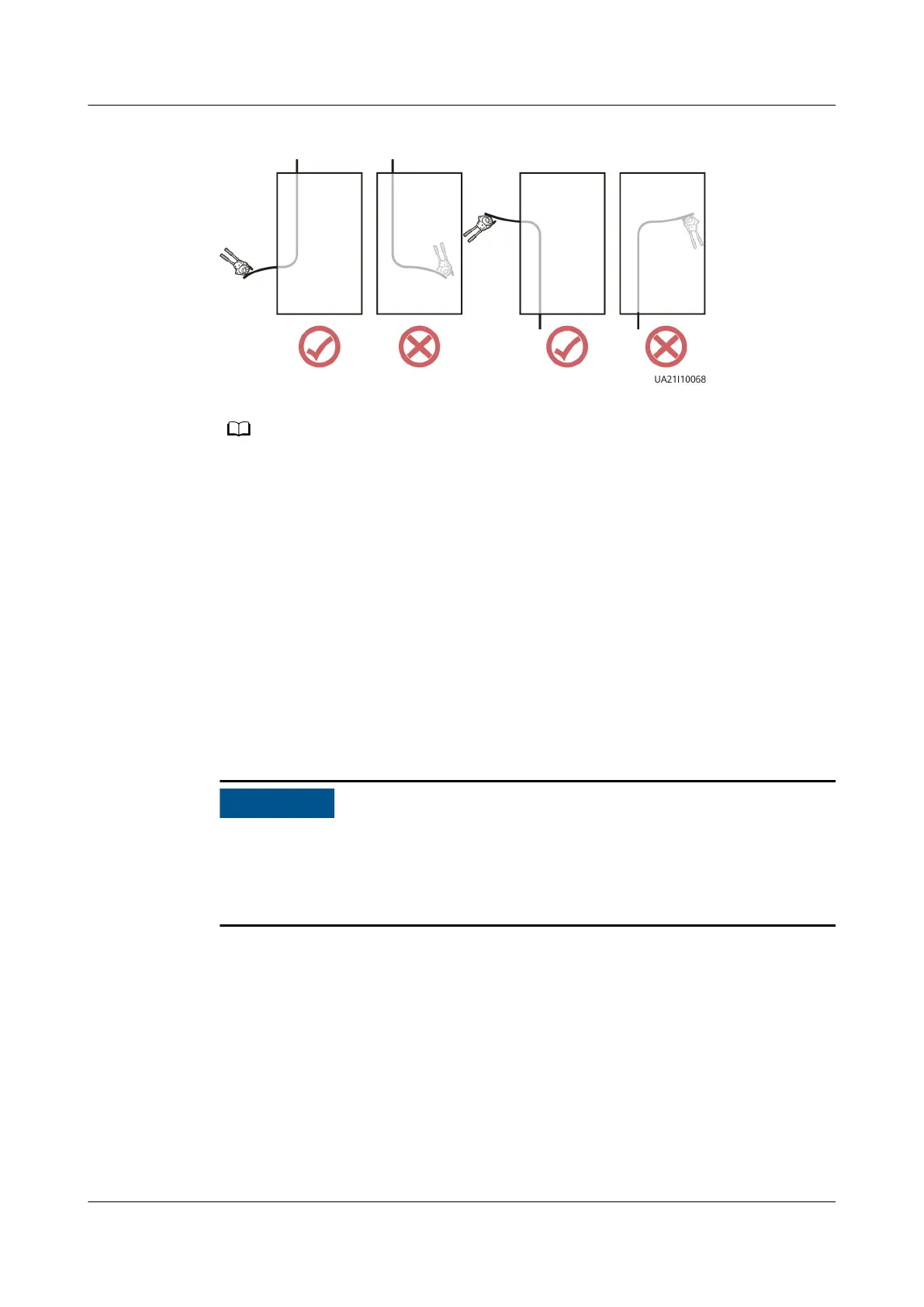

Figure 3-21 Preparing a cable terminal outside the cabinet
Choose an appropriate cabling route based on the actual situation. The gure is for reference
only.
Step 4 Connect the cable with a crimped terminal to the corresponding copper bar.
Step 5 Clean foreign matter inside the cabinet.
----End
3.3.5 Routing Cables
3.3.5.1 Top Cable Routing
Context
● Before connecting cables, ensure that the switches inside the UPS, the
upstream input switch and battery string switch are OFF to prevent operations
with power on.
● Route cables for the UPS from inside out and from bottom up.
Procedure
Step 1 Ensure the maintenance bypass switch is OFF. Open the front door, remove the
front cover, and remove covers from the top of the cabinet based on the site
requirements.
