Huawei UPS5000-E-30 kVA-FM - Preparing Power Cables

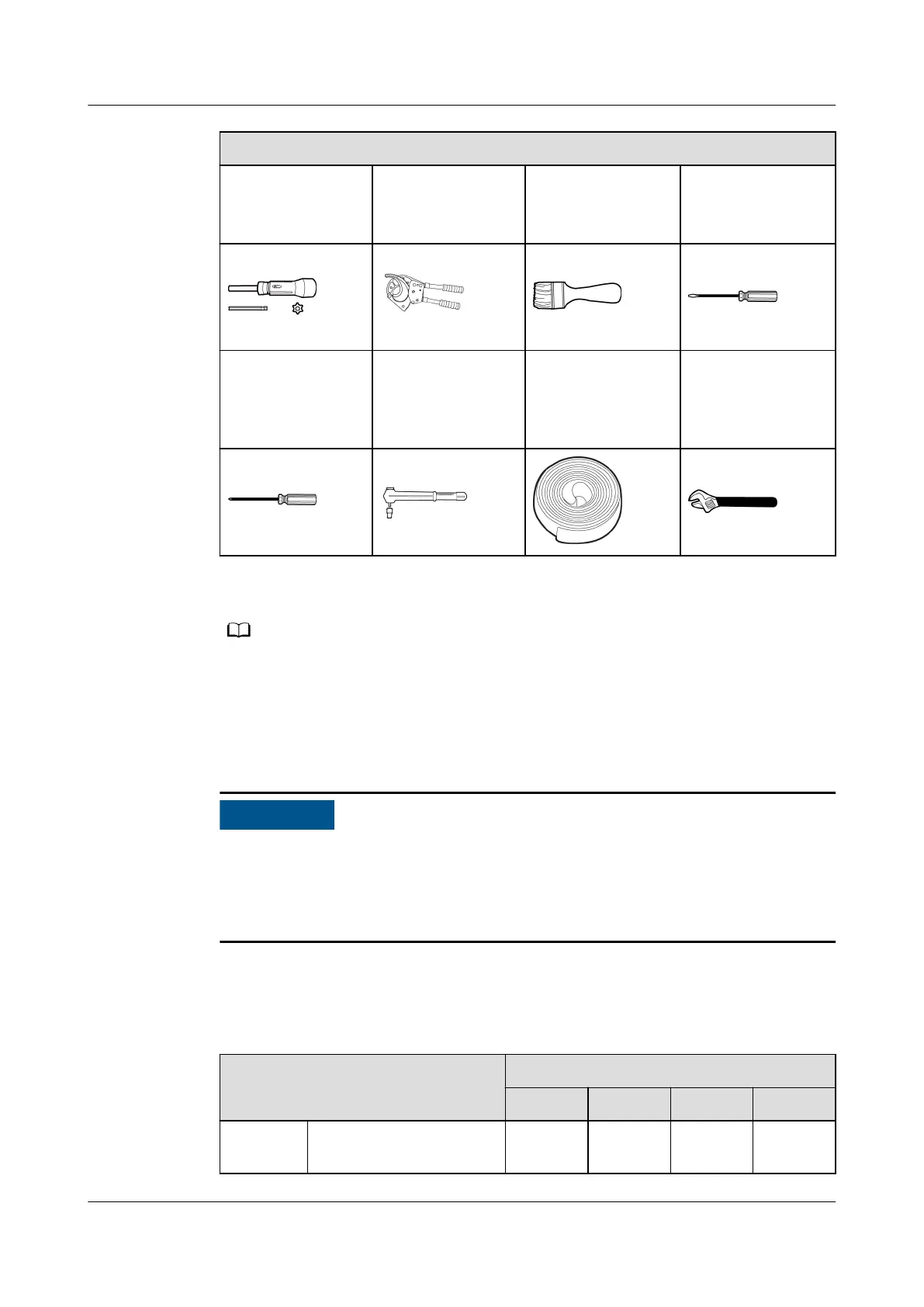

Tools and Instruments
Torque
screwdriver
Cable cutter Brush Flat-head
screwdriver
(2–5 mm)
Phillips
screwdriver
(M3/M4/M5/M6/
M8)
Insulated torque
wrench
(M6/M8/M12/
M16)
Heat shrink
tubing
Insulated
adjustable wrench
NO TE
Table 3-1 lists only the common tools for installation and cable connection. For more dedicated
tools required, see the corresponding component manuals. Prepare tools based on site
requirements.
3.1.3 Preparing Power Cables
NO TICE
● The UPS can generate large leakage currents. A circuit breaker that provides
leakage current protection is not recommended.
● If multiple UPSs are to be connected in parallel, input and output power cables
for each UPS should have the same length and
specications.
Table 3-2 lists the recommended cross-sectional areas for UPS power cables. Note
that the currents listed are measured at a rated voltage of 380 V (line voltage).
Table 3-2 Recommended cross-sectional areas for power cables
Item
Specications
30 kVA 60 kVA 90 kVA 120 kVA
Mains
input
Mains input current (A) 55 110 165 220
UPS5000-E-(30 kVA–120 kVA)-FM
User Manual 3 Installation
Issue 03 (2022-01-30) Copyright © Huawei Technologies Co., Ltd. 48
