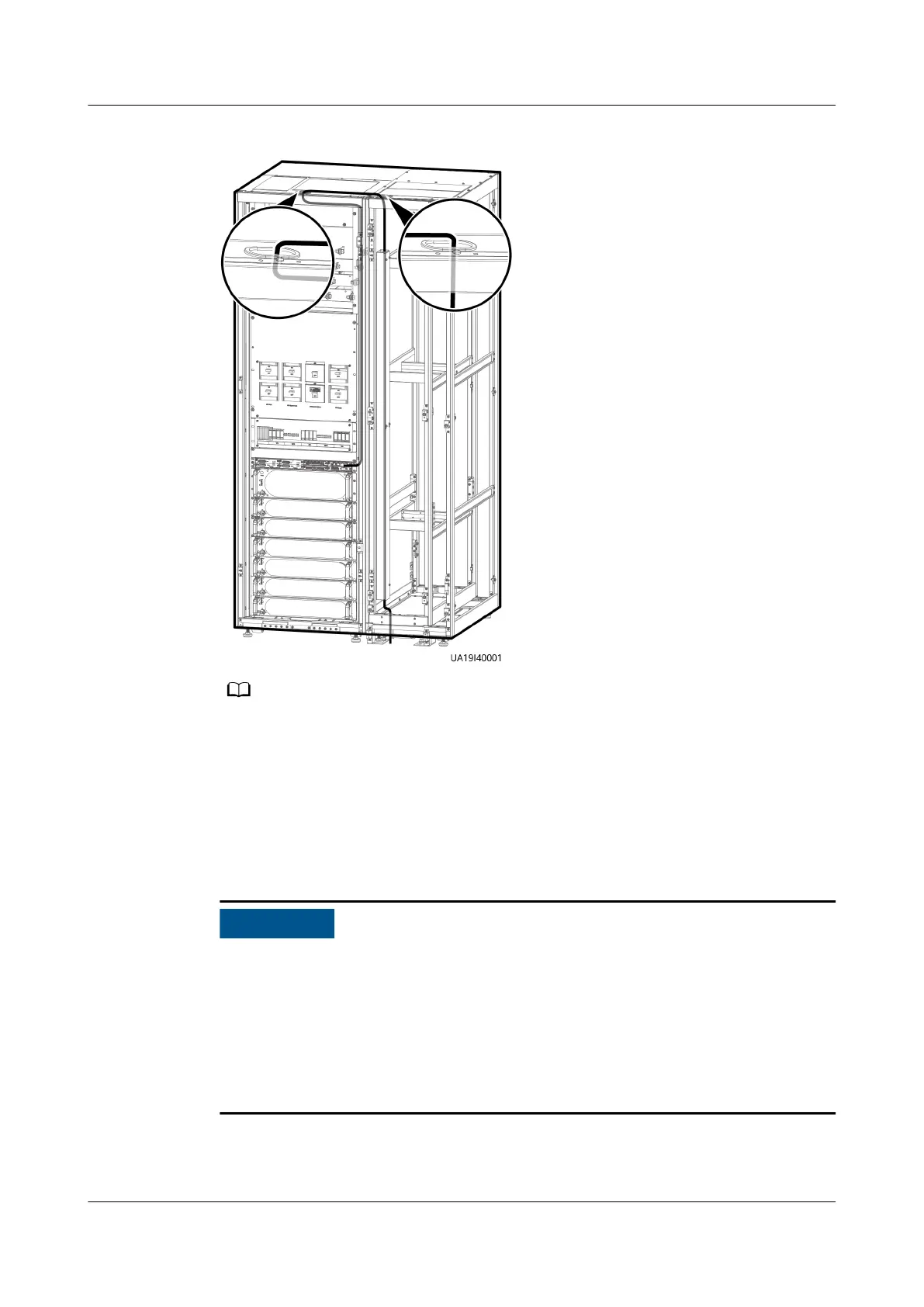

Figure 3-38 Signal cable
The number and colors of signal cables are for reference only.
Step 14 Install the right cover of the UPS cabinet on the right of the cable entry cabinet,
and install other covers in the original positions.
----End
3.3.6 Connecting a Remote EPO Switch
● The Company does not provide the EPO switch or cable. Prepare them by
yourself. The recommended cable size is 22 AWG.
● Equip the EPO switch with a protective cover to prevent misoperations, and
cover the cable with protective tubing.
● Triggering EPO will shut down the
rectier, inverter, charger, and static bypass,
but does not disconnect the UPS mains input. To power
o the UPS completely,
open the front-end input switch when triggering EPO.
Connect the requisite EPO switch to UPS dry contacts.
● Figure 3-39 shows the cable connections for an NC EPO switch.
UPS5000-E-(30 kVA–120 kVA)-FM
User Manual 3 Installation
Issue 03 (2022-01-30) Copyright © Huawei Technologies Co., Ltd. 77
