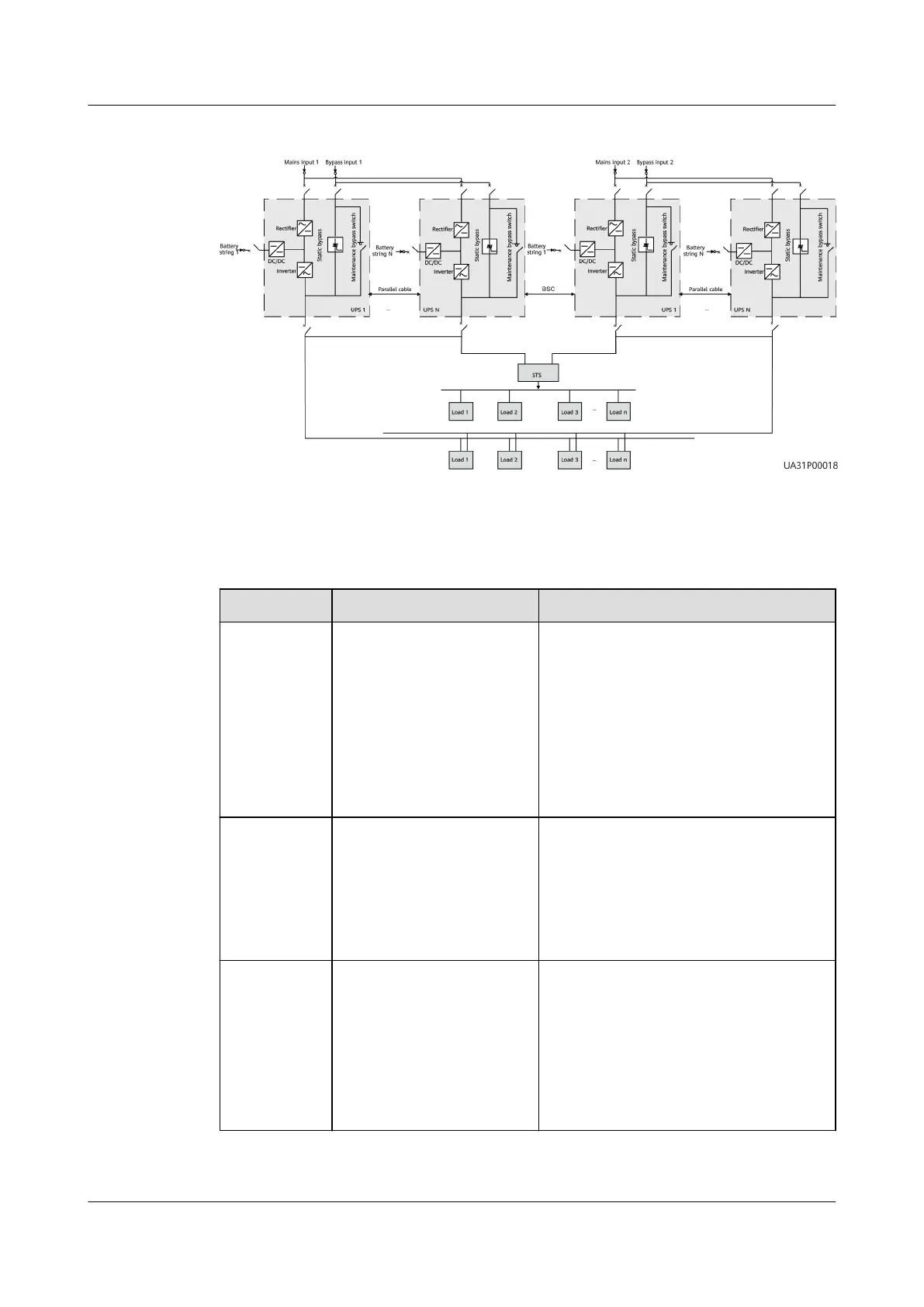

Figure 2-25 Conceptual diagram of a dual-bus system
2.5 Optional Components
Table 2-14 Optional components
Component
Model/Specications Function
BCB-BOX PDC-0250DC0384BXA
PDC-0400DC0384BXA
PDU8000-0125DCV8-
BXA001
PDU8000-0250DCV8-
BXA001
PDU8000-0400DCV8-
BXA001
Controls the connection between
battery strings and the UPS. Provides
overload protection, short-circuit
protection, and remote trip control.
BBB-BOX PDU8000-0630DCV8-
BGA001
PDU8000-1250DCV8-
BGA001
PDU8000-2000DCV8-
BGA001
Converges the energy of multiple
battery strings.
Surge
protective
module
SPD The surge protective module consists
of two groups of SPD circuit breakers
and SPDs, which provide surge
protection for mains input and
bypass input respectively. The surge
protective capacity reaches 5 kA if a
surge protective module is
congured.
