2.3.5.4 Monitoring Interface Card
NO TICE
● The FE port resembles the RS485 port. Therefore, follow the silk screens when
you connect communications cables. If you mistake the RS485 port as the FE
port during cable connection, the WebUI communication fails. Conversely, if the
FE port is mistaken for the RS485 port during cable connection, RS485
communication fails.
● Dry contact signals take
eect after you set them. Disable unused dry contact
signals on the monitoring system.
● In a parallel system, ensure that used dry contacts properly connect to each
UPS.
The monitoring interface card provides external ports as well as monitoring and
control functions for the MDU. The monitoring interface card provides the
ambient temperature and humidity sensor port, FE port, battery temperature
monitoring port, and network management port. The MDU monitors the UPS,
allows users to set parameters, delivers commands, reports information, and
displays the UPS key information and parameters on the LCD.

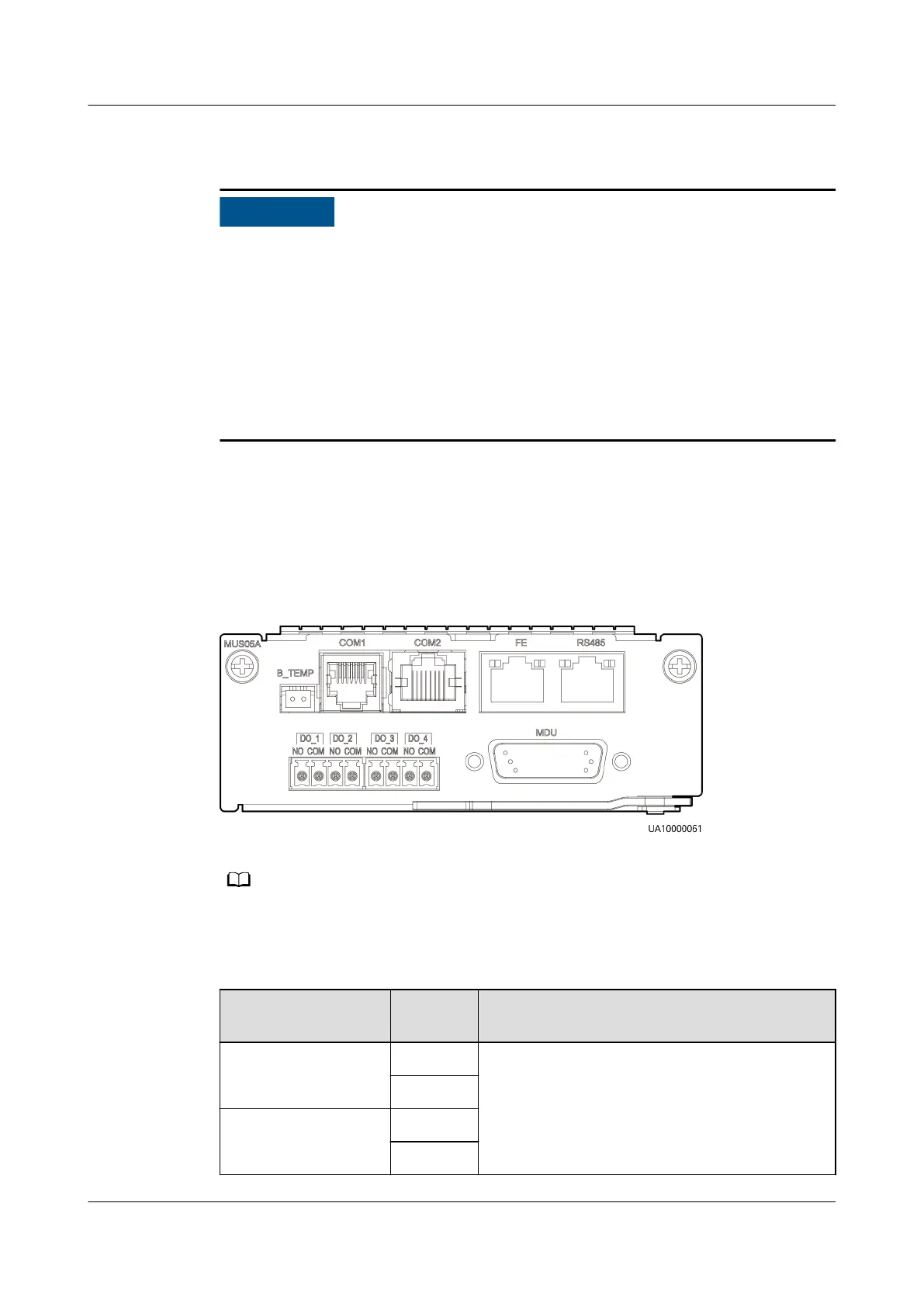

Figure 2-16 Monitoring interface card
NO TE
DO_1 to DO_4 meet the maximum voltage and current requirements of 30 V DC/1 A or 60
V DC/0.5 A.
Table 2-7 Monitoring interface card
Port
Silk
Screen
Description
DO_1 NO ● DO_1, DO_2, DO_3, and DO_4 indicate
alarm outputs. The default values are
Critical alarm, Minor alarm, Bypass
mode, and Battery mode, respectively.
COM
DO_2 NO
COM
UPS5000-E-(30 kVA–120 kVA)-FM
