2.3.3 Bypass Module
Appearance

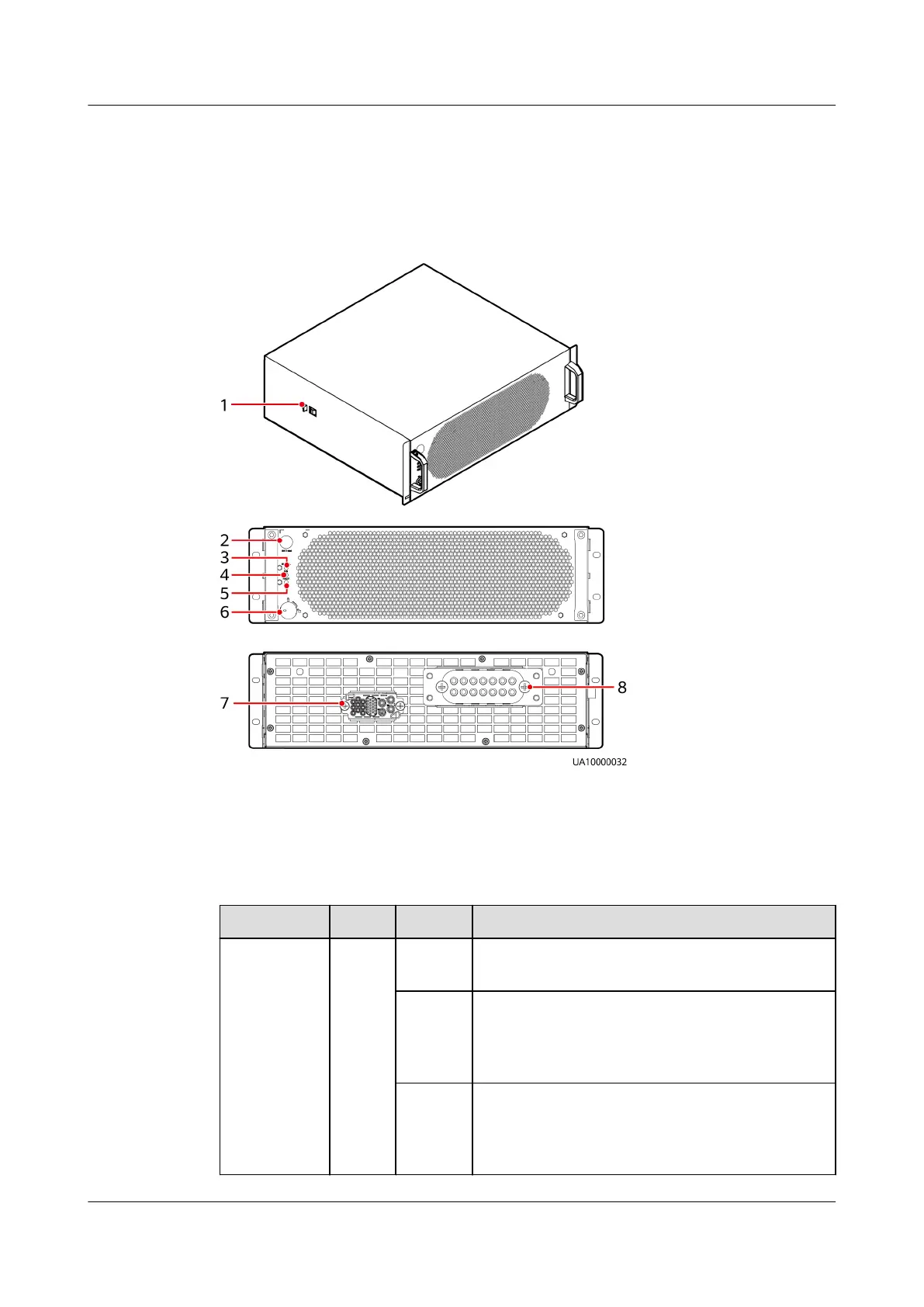

Figure 2-10 Bypass module
(1) Positioning lock (2) Cold start button (3) Running indicator (4) Alarm indicator
(5) Fault indicator (6) Ready switch (7) Signal port (8) Input and output
ports
Table 2-3 Indicator description
Indicator
Color Status Description
Running
indicator
Green Steady
on
The system is working in bypass mode.
Blinking
at long
interval
s
The bypass has no output (blinking at 0.2 Hz,
on for 2.5s and o for 2.5s).
Blinking
at short
interval
s
The bypass is not congured or the DSP
software is being upgraded (blinking at 4 Hz,
on for 0.125s and o for 0.125s).
