2.3.1 Structure

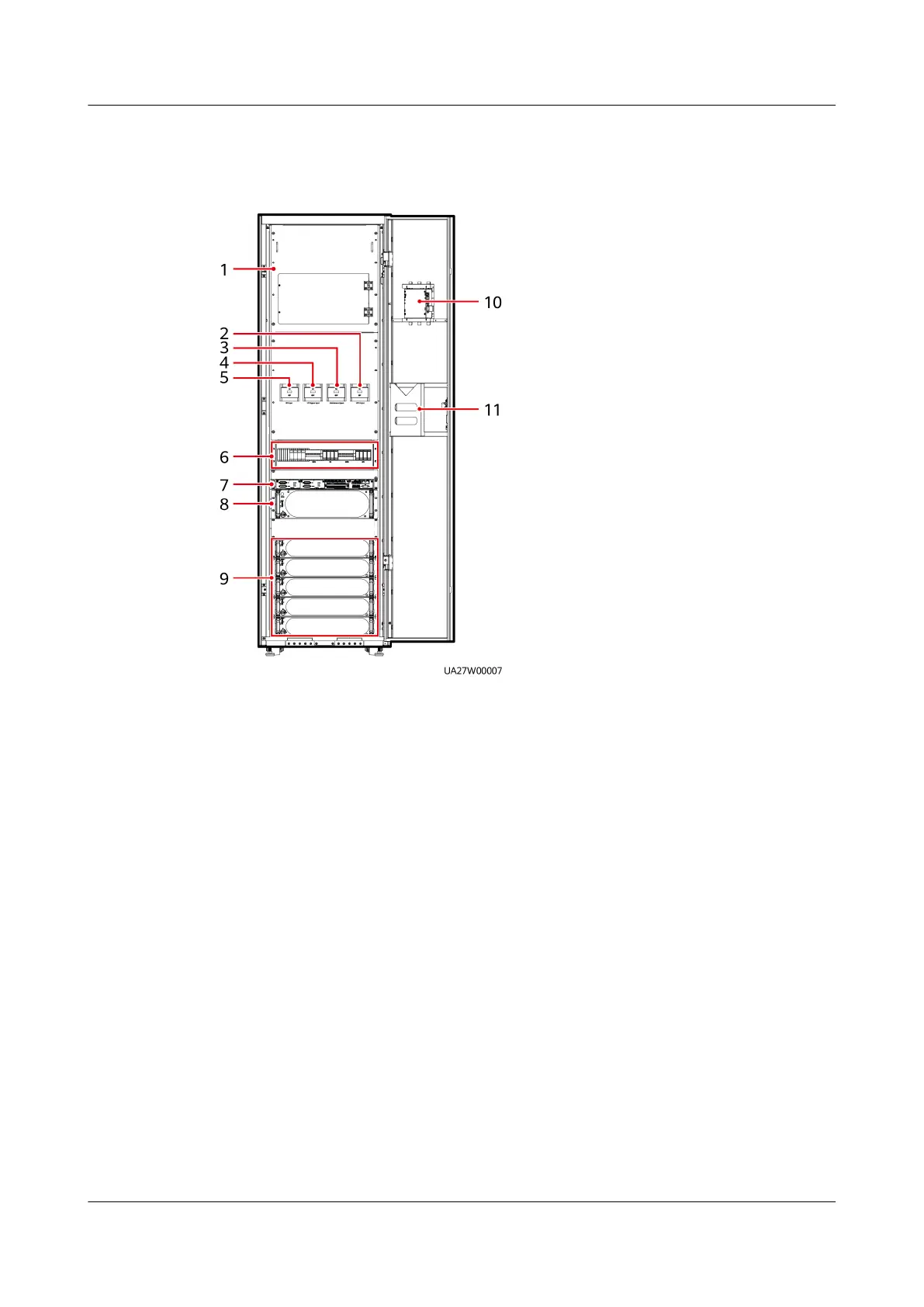

Figure 2-8 Front view
(1) Cover (2) Output switch (3) Maintenance
bypass switch
(4) Bypass input switch
(5) Mains input switch (6) Surge protective
module (optional)
(7) Control module (8) Bypass module
(9) Power modules (10) Monitor display
module (MDU)
(11) Document holder
UPS5000-E-(30 kVA–120 kVA)-FM
User Manual 2 Overview
Issue 03 (2022-01-30) Copyright © Huawei Technologies Co., Ltd. 23
