1. In the scenarios where holes are drilled for routing cables or covers are removed for
routing cables, after routing cables and checking cable connections, use sealing putty to
ll in the gap between the cables and the cabinet.
2. After verifying the installation, reinstall all the covers.
3. Do not remove the dustproof cover before power-on to prevent dust inside the UPS, as
shown in Figure 3-51.

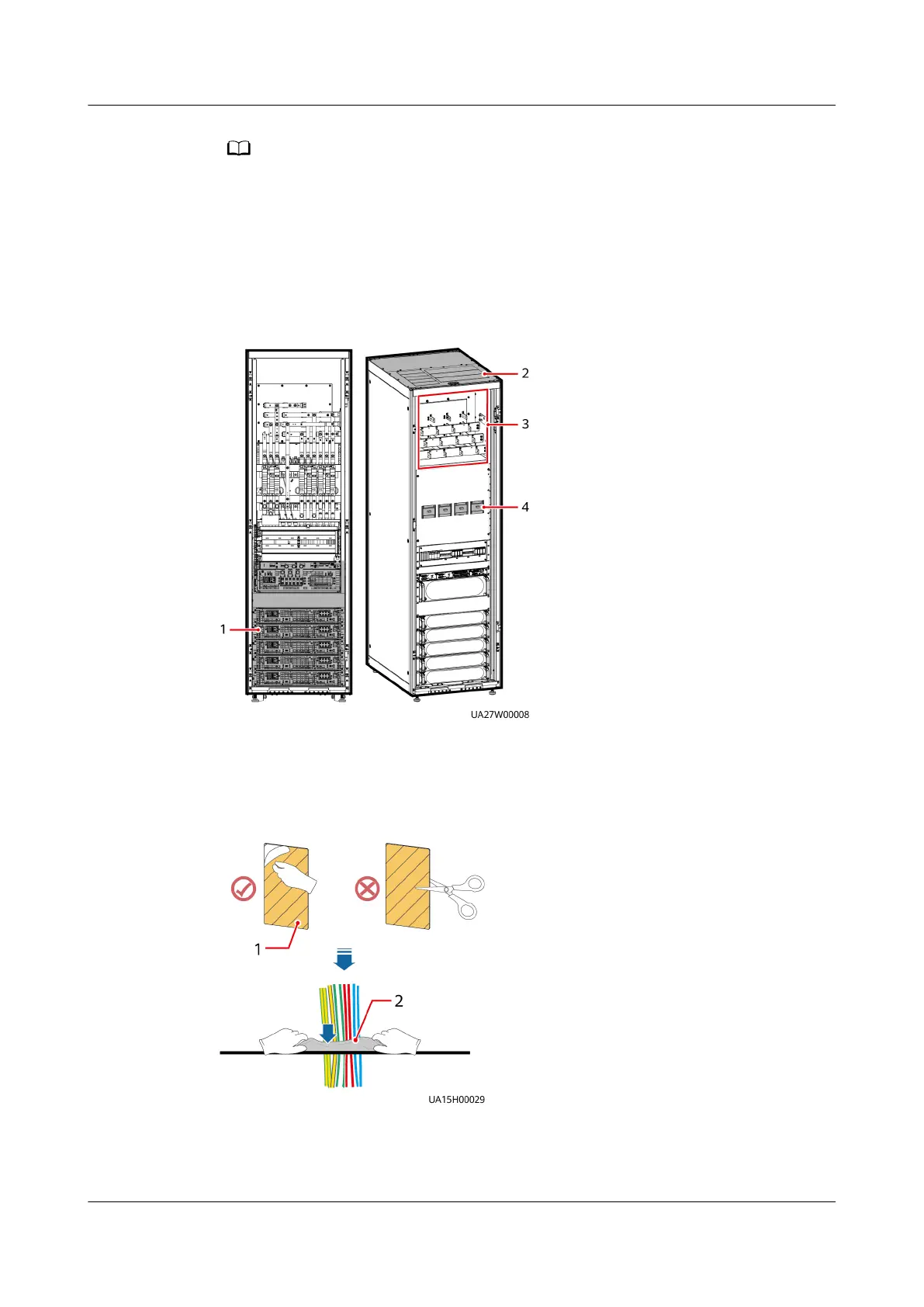

Figure 3-49 Positions to be checked for foreign matter
(1) Rear of modules (2) Cabinet top (3) Wiring terminal
blocks
(4) Switches
Figure 3-50 Filling a hole with sealing putty
(1) Paper protective
lm (2) Sealing putty
UPS5000-E-(30 kVA–120 kVA)-FM
User Manual 3 Installation
Issue 03 (2022-01-30) Copyright © Huawei Technologies Co., Ltd. 86
