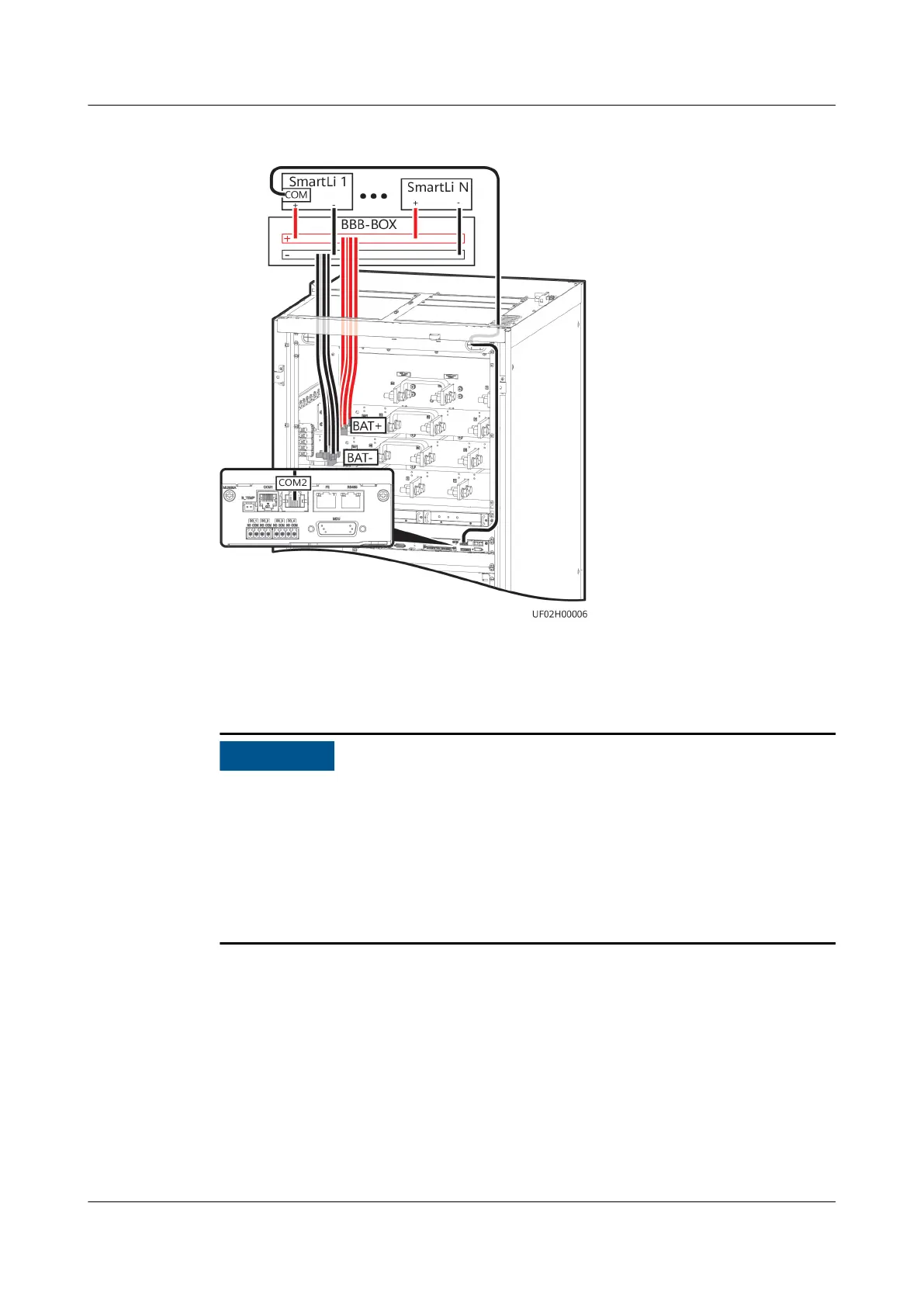

Figure 6-12 Cable connections (with a BBB box)
----End
6.3.4 Connecting a Remote EPO Switch
● Huawei does not provide the EPO switch or cable. Prepare them by yourself.
The recommended cable is 22 AWG.
● Equip the EPO switch with a protective cover to prevent misoperations, and
protect the cable with a protective tube.
● Triggering EPO will shut down the
rectier, inverter, charger, and static bypass,
but will not disconnect the UPS mains input. To power o the UPS completely,
turn o the upstream input switch when you trigger EPO.
Connect the EPO switch to the dry contact on the UPS using a cable.
UPS5000-H-(400 kVA-600 kVA)
User Manual (100 kVA Power Module) 6 Installation
Issue 01 (2020-11-30) Copyright © Huawei Technologies Co., Ltd. 64
