E.11Part. N. 8000 H0364 (09-2008)
GENERAL OPERATIONS

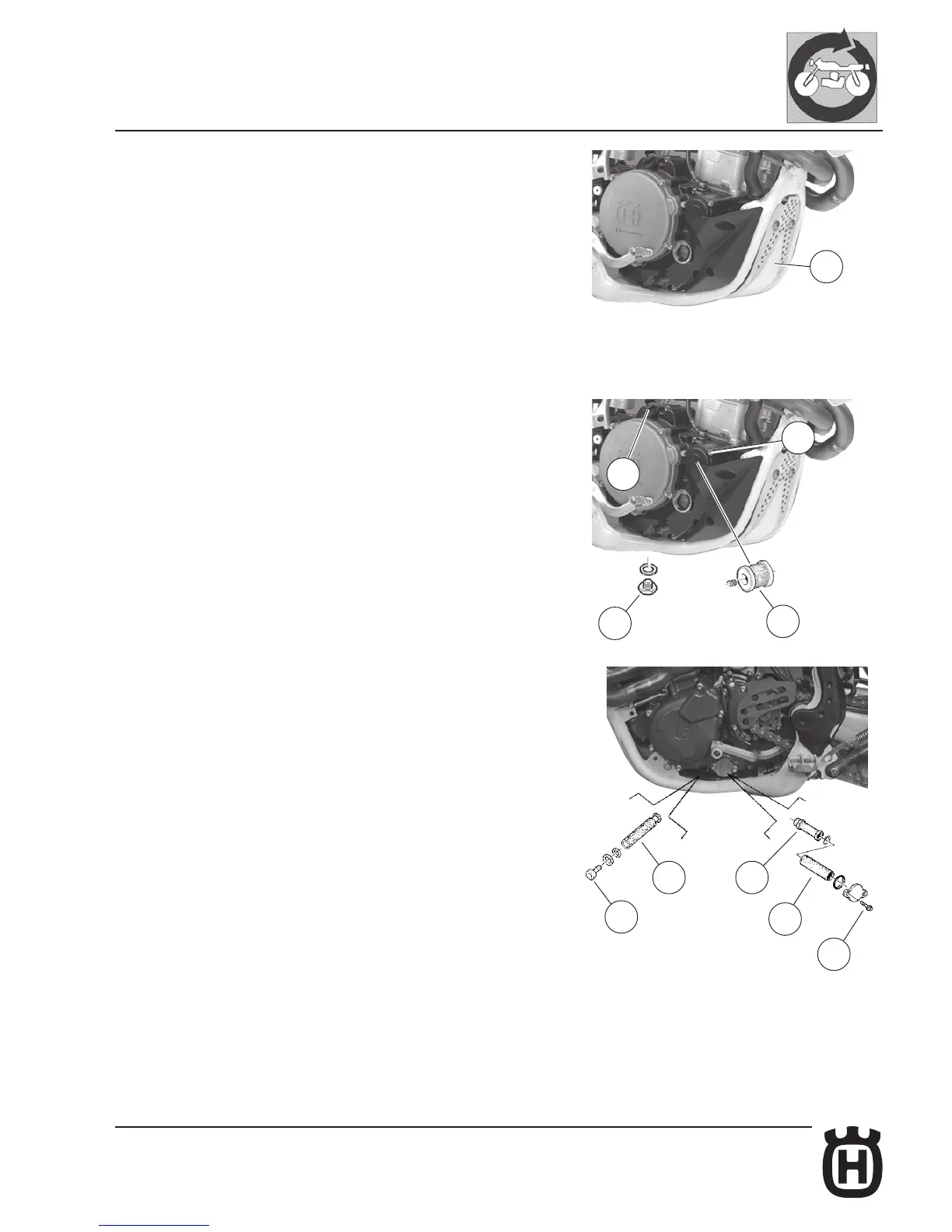

6) Even if not essential, it is advisable to remove the engine lower guard (A) then
place a vessel under the engine and remove the oil filler cap (1); using a 8 mm
Allen wrench, remove the oil draining plug (2) and eliminate the used oil; on the
L.H. side of the engine, using a 8 mm wrench, remove the rear filter cover screws
(3) and extract the steel filter (4) and the net filter (5).
Still operating on the L.H. side of the engine, using a 6 mm Allen wrench, un-
screw the plug (6) then remove the net filter (7) and the O-Ring; on the R.H. side
of the engine, unscrew the three fastening screws (8) and remove the cover and
the filter cartridge (9).
6
7 4
5
3
8
A
1
9
2
