Hypertherm Powermax 65 Operator's Manual

OPERATION
4-18 powermax 65/85 Operator Manual

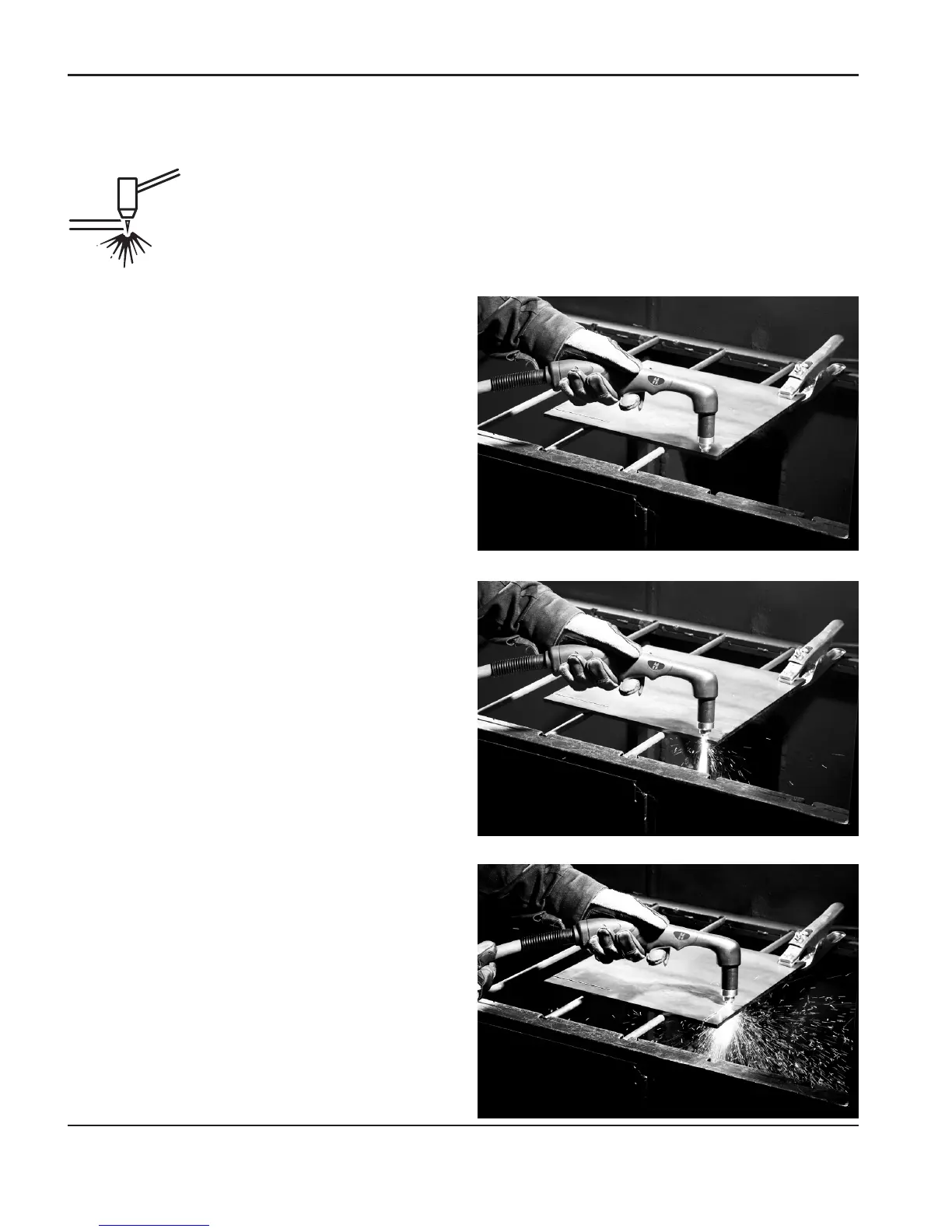

Start a cut from the edge of the workpiece
1. With the work clamp attached to
the workpiece, hold the torch nozzle
perpendicular (90°) to the edge of the
workpiece.
2. Press the torch’s trigger to start the
arc. Pause at the edge until the arc has
cut completely through the workpiece.
3. Drag the torch tip lightly across the
workpiece to proceed with the cut.
Maintain a steady, even pace.

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
