Hypertherm Powermax 65 Operator's Manual

POWER SUPPLY SETUP
2-10 powermax 65/85 Operator Manual
Single-phase power cord installation

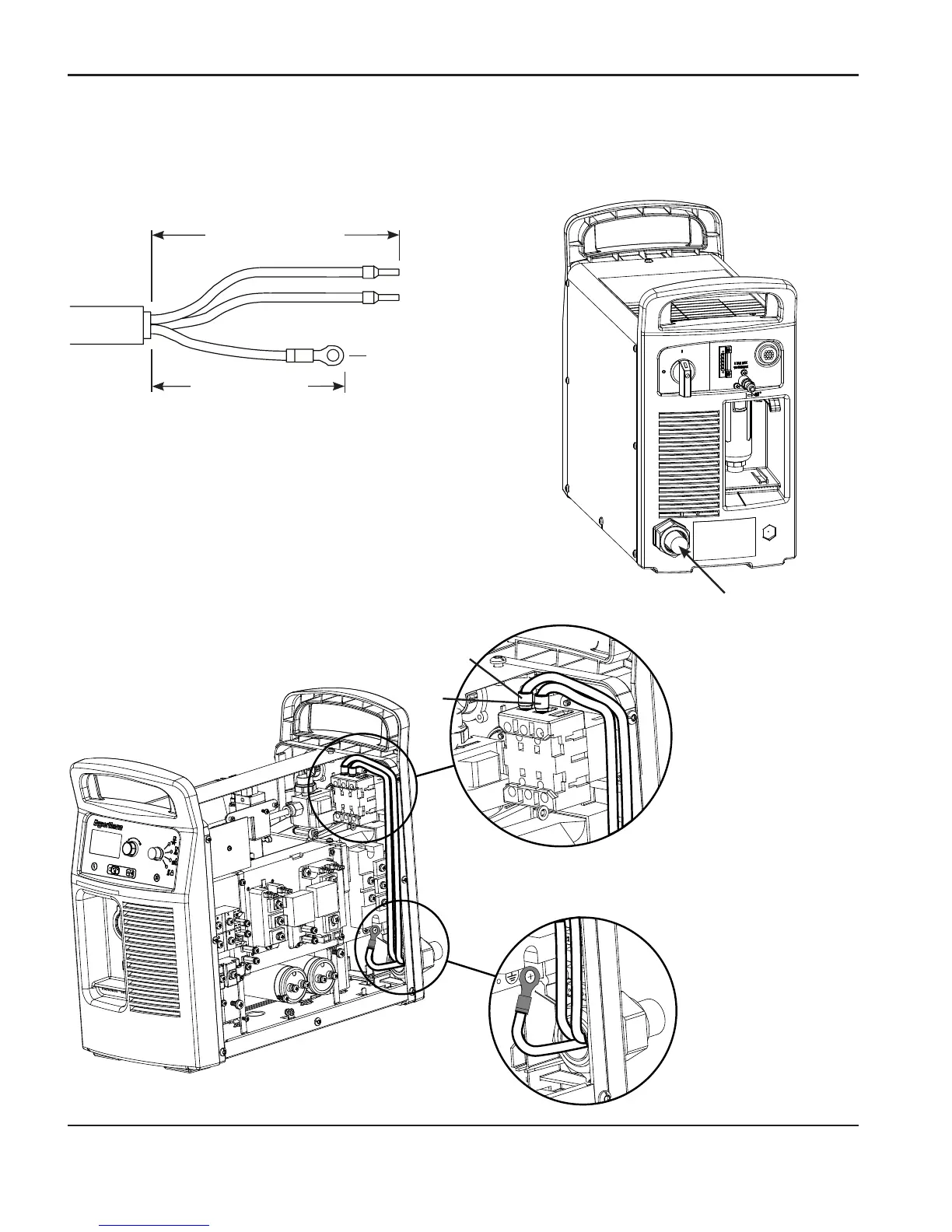

Strip and prepare the power cord wires as shown below.
L1
L2
Ground
#10
14.5 in (368 mm)
6 in (152 mm)
L1
L2
Power switch
Ground screw
Route lead through
strain relief and tighten

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
