Hypertherm Powermax 65 Operator's Manual

TORCH SETUP
powermax 65/85 Operator Manual 3-7

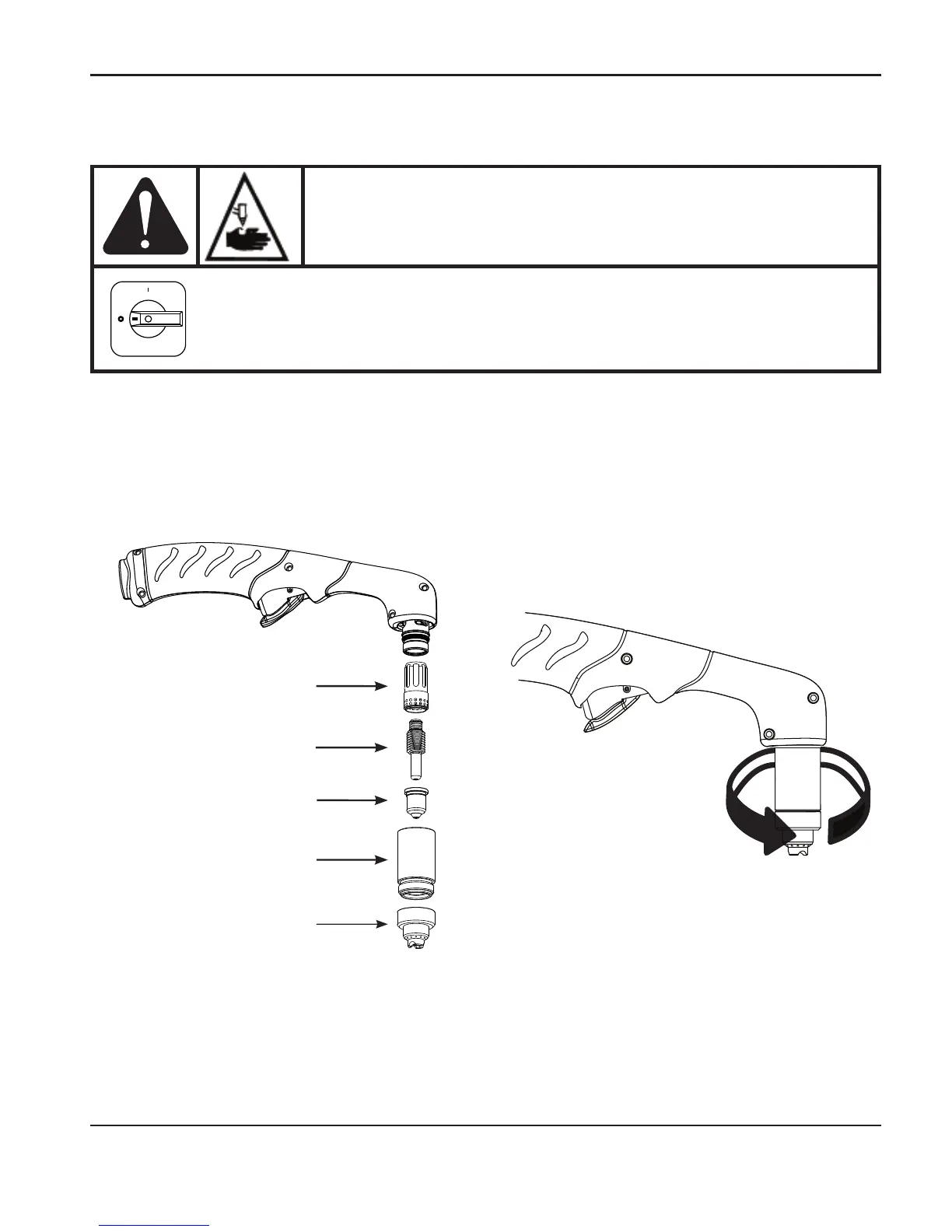

Install the hand torch consumables
To operate the hand torch, a complete set of consumable parts must be installed: shield, retaining
cap, nozzle, electrode, and swirl ring.
With the power switch in the OFF (O) position, install the torch consumables asshown below.
Retaining cap
Nozzle
Electrode
Swirl ring
WARNING:
INSTANTON TORCHES
PLASMA ARC CAN CAUSE INJURY AND BURNS
Shield
The plasma arc comes on im me di ate ly when the torch trigger is
activated. Make sure the power is OFF before changing consumables.

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
