Hypertherm Powermax 65 Operator's Manual

OPERATION
powermax 65/85 Operator Manual 4-19

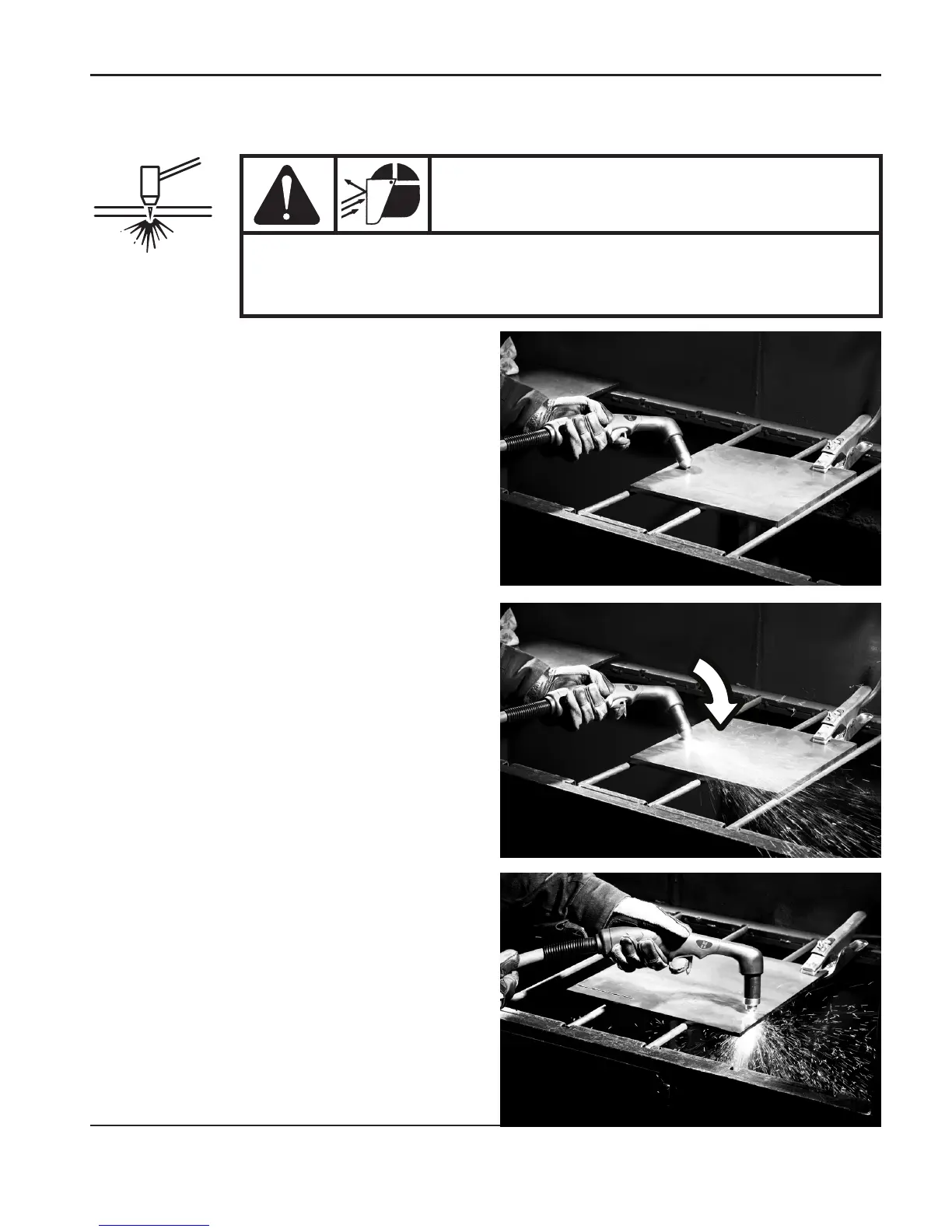

Pierce a workpiece
1. With the work clamp attached to the
workpiece, hold the torch at an approximate
30° angle to the workpiece with the
torch tip within 1/16 inch (1.5 mm) of the
workpiece before firing the torch.
2. Fire the torch while still at an angle to the
workpiece. Slowly rotate the torch to a
perpendicular (90°) position.
3. Hold the torch in place while continuing to
press the trigger. When sparks exit below
the workpiece, the arc has pierced the
material.
4. When the pierce is complete, dragthe
nozzle lightly along the workpiece to
proceed with the cut.
WARNING
SPARKS AND HOT METAL CAN INJURE EYES AND BURN SKIN.
When firing the torch at an angle, sparks and hot metal will spray
out from the nozzle. Point the torch away from yourself and others.

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
