Hypertherm Powermax 65 Operator's Manual

OPERATION
powermax 65/85 Operator Manual 4-3

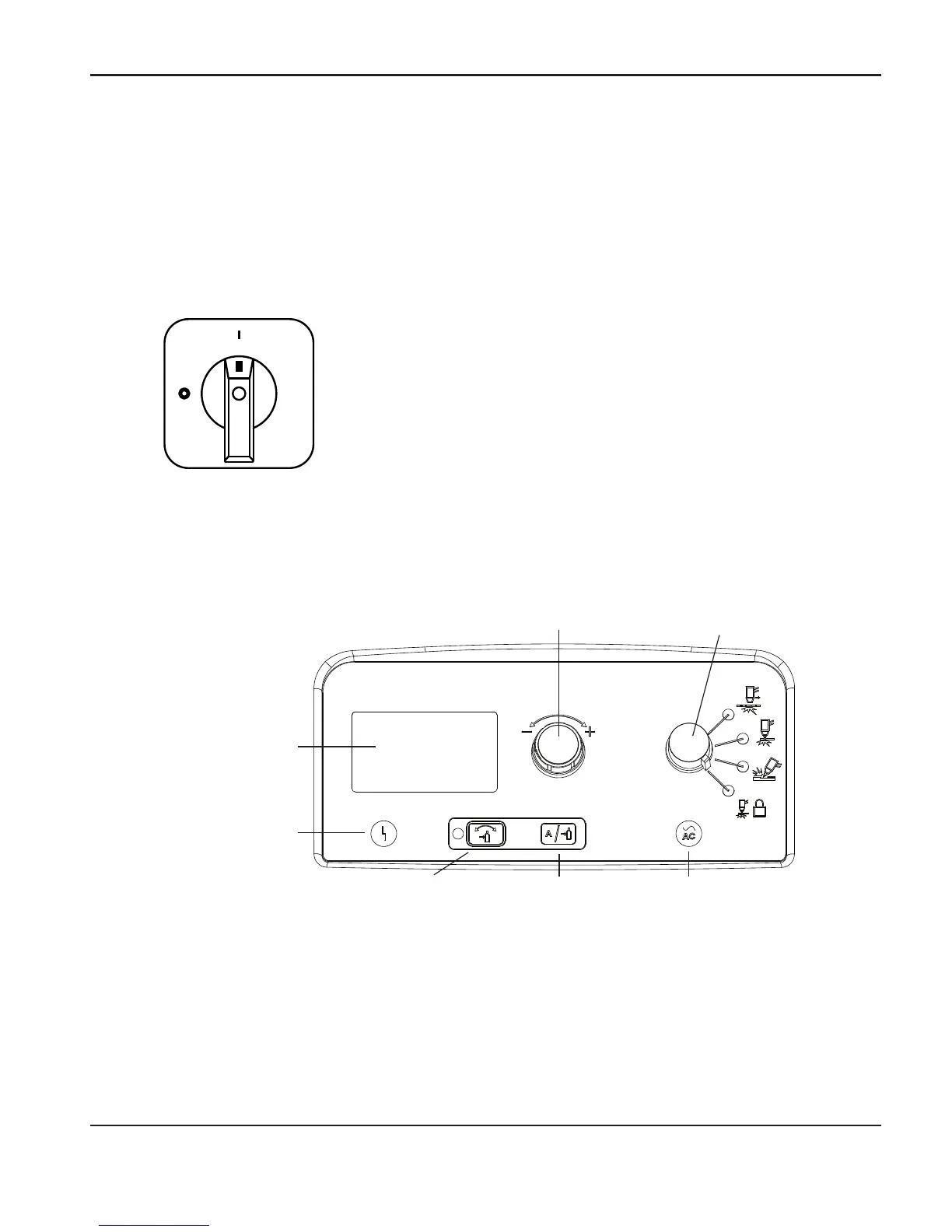

Front controls and LEDs
Fault LED
(yellow)
Power ON LED
(green)
Status screen
Automatic/manual pressure
setting mode selector
Current/gas
selector
Operating
mode switch
Adjustment knob
Controls and indicators
The Powermax65 and Powermax85 power supplies have the following: ON/OFF switch,
adjustment knob, automatic/manual pressure setting mode selector, current/gas selector,
operating mode switch, indicator LEDs, and a status screen.
Rear controls
ON (I)/OFF (O) power switch
Activates the power supply and its control circuits.

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
