Hypertherm Powermax 65 Operator's Manual

SPECIFICATIONS
powermax 65/85 Operator Manual 1-15
O
l
Direct current (DC)
The terminal for the
external protective
(earth) conductor
AC input power
connection
Plasma torch cutting
Alternating current
(AC)
An inverter-based power
source, either 1-phase or
3-phase
Power is OFF
Power is ON
f
1
f
2
1~
AC
Power is ON (LED)
Inlet gas pressure fault
(LCD)
Missing or loose
consumables (LCD)
Power supply is out of
temperature range (LCD)
Volt/amp curve, “drooping”
characteristic

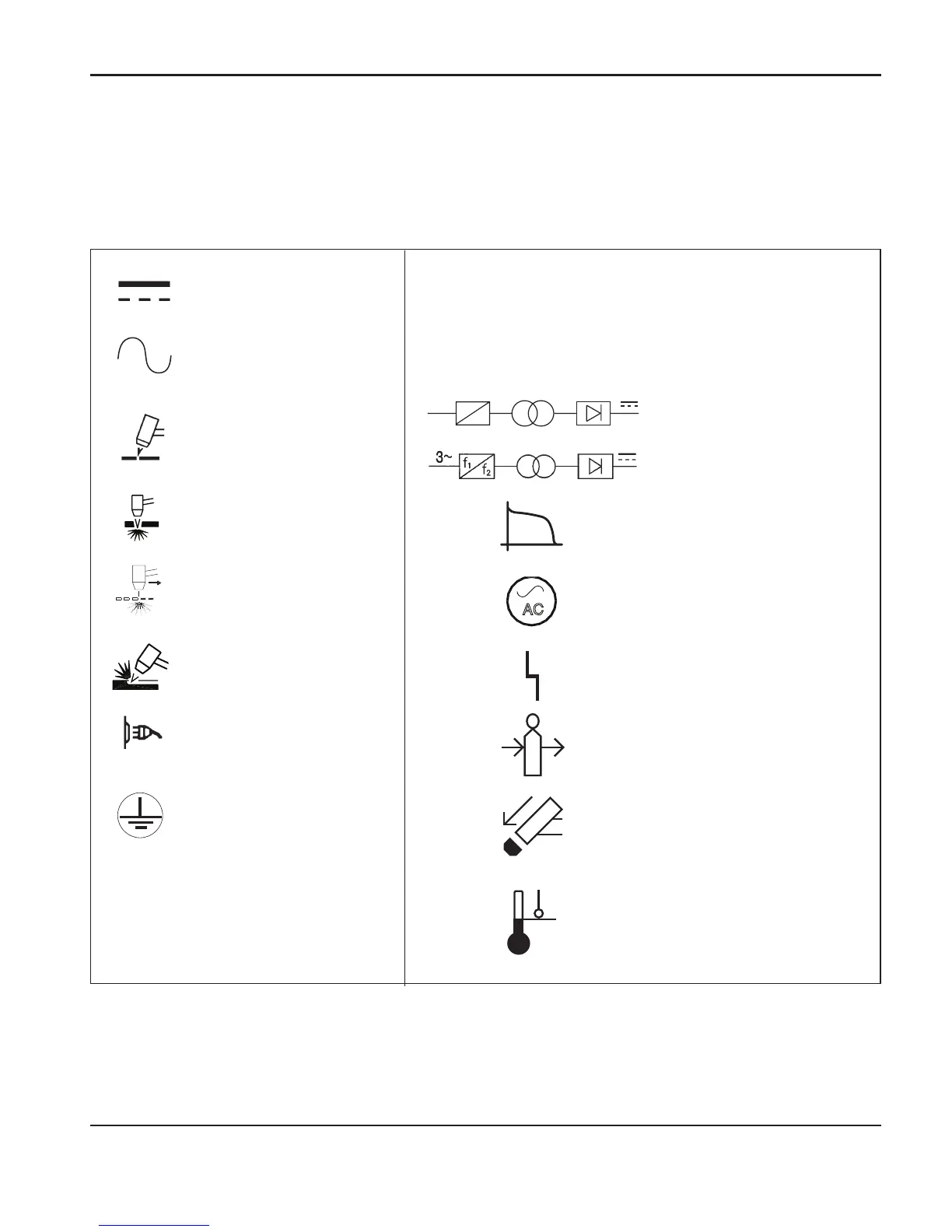

IEC symbols
The following symbols may appear on the power supply data plate, control labels, switches, LEDs,
and LCD screen.
System fault (LED)
Plate metal cutting
Expanded metal
cutting
Gouging

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
