Hypertherm Powermax 65 Operator's Manual

PARTS
powermax 65/85 Operator Manual 6-3

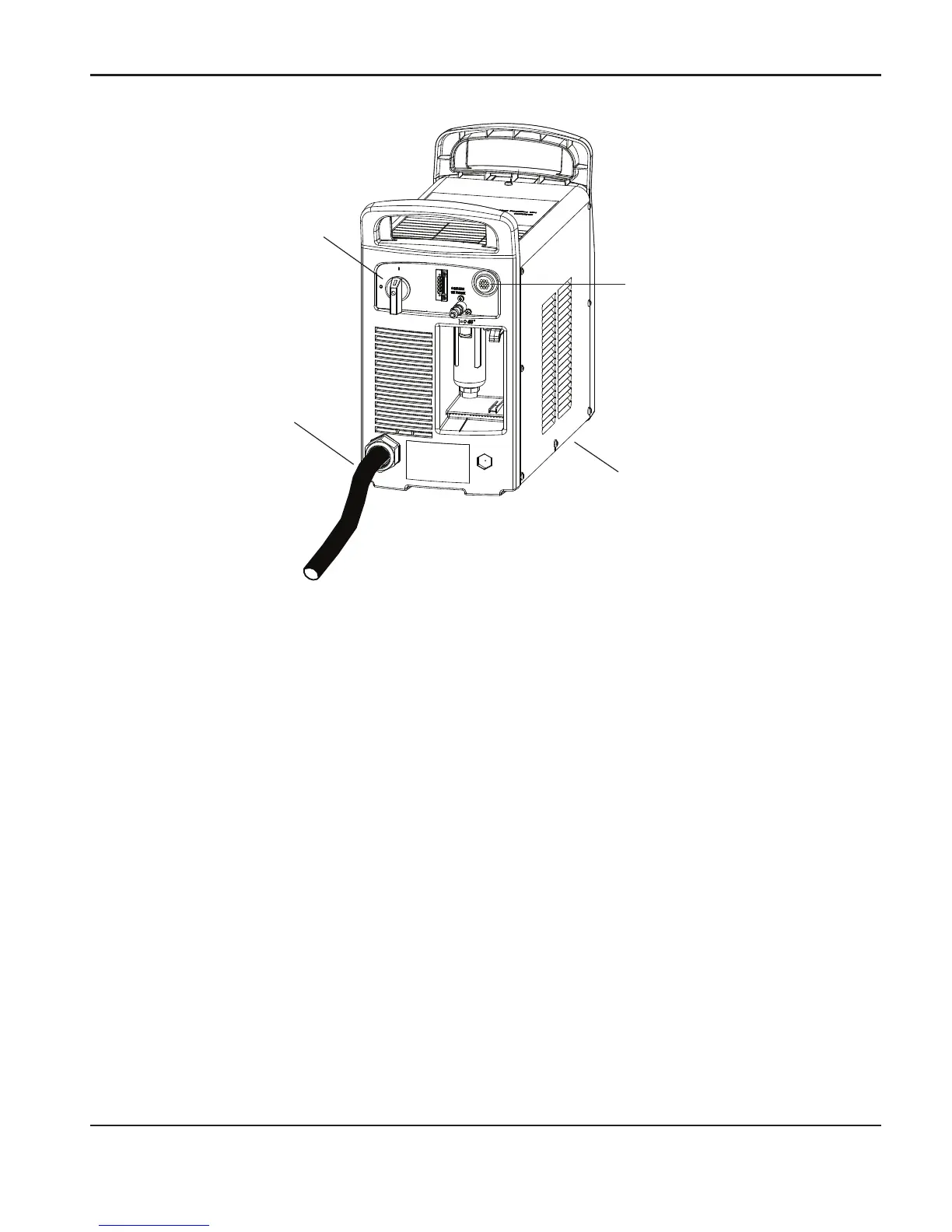

Receptacle for machine interface
cable or remote start pendant
Power cord
Base
Power switch
Part number Description
228691 Kit: Powermax65/85 CSA power cord
228679 Kit: Powermax65 CE power cord
228678 Kit: Powermax85 CE power cord
228680 Kit: Powermax65/85 power cord strain relief
128650 Remote start pendant for machine torch, 25 ft (7.63 m)
128651 Remote start pendant for machine torch, 50 ft (15.24 m)
128652 Remote start pendant for machine torch, 75 ft (22.86 m)
023206 Machine interface cable (start plasma, arc transfer, ground), 25 ft (7.63 m)
023279 Machine interface cable (start plasma, arc transfer, ground), 50 ft (15.24 m)
228350 Machine interface cable (start plasma, arc transfer, adjustable voltage
divider, ground), 25 ft (7.6 m), spade connectors
228351 Machine interface cable (start plasma, arc transfer, adjustable voltage
divider, ground), 50 ft (15 m), spade connectors
127204 Powermax45/65/85 Machine interface receptacle cover
228539 Kit: RS485 board with cables (65/85)
228697 Kit: PMX65/85 Machine Interface Cable (internal cable w/v-div board)

Hypertherm Powermax 65 Specifications

General

Open Circuit Voltage (OCV)	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Maximum Cut Capacity (Mild Steel)	1" (25 mm)
Input Voltage	200-600 V, 1/3-PH, 50/60 Hz
Output Current	20 – 65 A
Duty Cycle	50% @ 65 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Torch Lead Length	25 ft (7.6 m)
Maximum Cut Capacity (Aluminum)	5/8" (16 mm)
Severance Cut Capacity (Mild Steel)	1-1/4" (32 mm)
Maximum Severance Thickness	1-1/4 in (32 mm)
Gas Type	Air/Nitrogen
Torch Options	Hand Torch, Mechanized Torch
